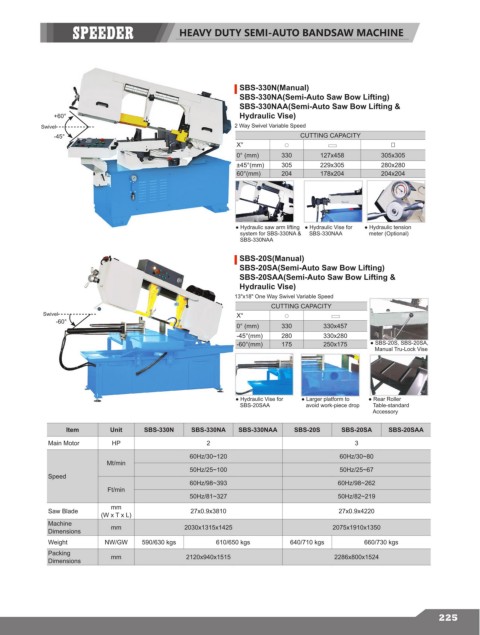

HEAVY DUTY SEMI-AUTO BANDSAW MACHINE

SBS-330N(Manual)
SBS-330NA(Semi-Auto Saw Bow Lifting)
SBS-330NAA(Semi-Auto Saw Bow Lifting &
+60° Hydraulic Vise)
Swivel 2 Way Swivel Variable Speed
-45° CUTTING CAPACITY
X°
0° (mm) 330 127x458 305x305
±45°(mm) 305 229x305 280x280
60°(mm) 204 178x204 204x204

● Hydraulic saw arm lifting ● Hydraulic Vise for ● Hydraulic tension
system for SBS-330NA & SBS-330NAA meter (Optional)
SBS-330NAA
SBS-20S(Manual)
SBS-20SA(Semi-Auto Saw Bow Lifting)
SBS-20SAA(Semi-Auto Saw Bow Lifting &
Hydraulic Vise)
13"x18" One Way Swivel Variable Speed
CUTTING CAPACITY
Swivel X°
-60°
0° (mm) 330 330x457
-45°(mm) 280 330x280
-60°(mm) 175 250x175 ● SBS-20S, SBS-20SA,
Manual Tru-Lock Vise

● Hydraulic Vise for ● Larger platform to ● Rear Roller
SBS-20SAA avoid work-piece drop Table-standard
Accessory

ltem Unit SBS-330N SBS-330NA SBS-330NAA SBS-20S SBS-20SA SBS-20SAA
Main Motor HP 2 3
60Hz/30~120 60Hz/30~80
Mt/min
50Hz/25~100 50Hz/25~67
Speed
60Hz/98~393 60Hz/98~262
Ft/min
50Hz/81~327 50Hz/82~219
mm
Saw Blade 27x0.9x3810 27x0.9x4220
(W x T x L)
Machine mm 2030x1315x1425 2075x1910x1350
Dimensions
Weight NW/GW 590/630 kgs 610/650 kgs 640/710 kgs 660/730 kgs
Packing mm 2120x940x1515 2286x800x1524
Dimensions
