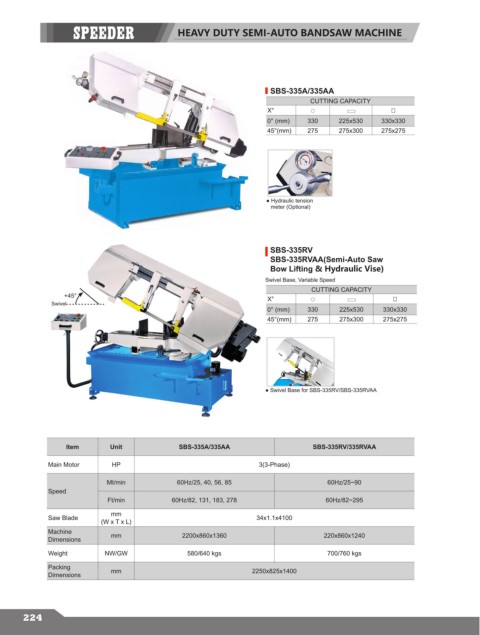

HEAVY DUTY SEMI-AUTO BANDSAW MACHINE
SBS-335A/335AA
CUTTING CAPACITY
X°
0° (mm) 330 225x530 330x330
45°(mm) 275 275x300 275x275
● Hydraulic tension
meter (Optional)
SBS-335RV
SBS-335RVAA(Semi-Auto Saw
Bow Lifting & Hydraulic Vise)
Swivel Base, Variable Speed
CUTTING CAPACITY
+45° X°
Swivel
0° (mm) 330 225x530 330x330
45°(mm) 275 275x300 275x275
● Swivel Base for SBS-335RV/SBS-335RVAA
ltem Unit SBS-335A/335AA SBS-335RV/335RVAA
Main Motor HP 3(3-Phase)
Mt/min 60Hz/25, 40, 56, 85 60Hz/25~90
Speed
Ft/min 60Hz/82, 131, 183, 278 60Hz/82~295
mm
Saw Blade 34x1.1x4100
(W x T x L)
Machine mm 2200x860x1360 220x860x1240
Dimensions
Weight NW/GW 580/640 kgs 700/760 kgs
Packing mm 2250x825x1400
Dimensions
224
