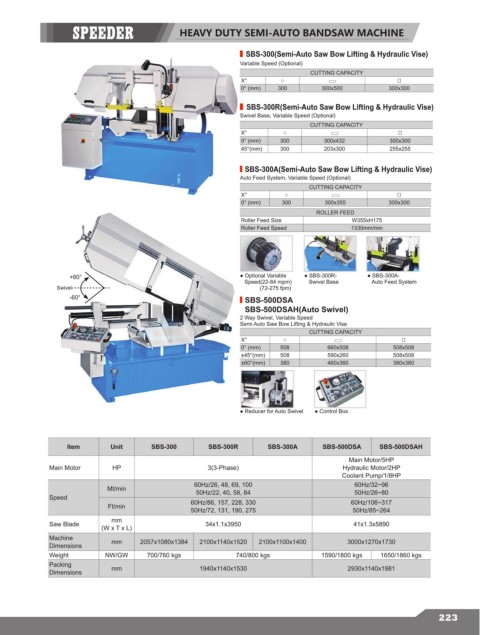

HEAVY DUTY SEMI-AUTO BANDSAW MACHINE

SBS-300(Semi-Auto Saw Bow Lifting & Hydraulic Vise)
Variable Speed (Optional)
CUTTING CAPACITY
X°
0° (mm) 300 300x500 300x300

SBS-300R(Semi-Auto Saw Bow Lifting & Hydraulic Vise)
Swivel Base, Variable Speed (Optional)
CUTTING CAPACITY
X°
0° (mm) 300 300x432 300x300
45°(mm) 300 203x300 255x255

SBS-300A(Semi-Auto Saw Bow Lifting & Hydraulic Vise)
Auto Feed System, Variable Speed (Optional)
CUTTING CAPACITY
X°
0° (mm) 300 300x355 300x300
ROLLER FEED
Roller Feed Size W355xH175
Roller Feed Speed 1330mm/min

+60° ● Optional Variable ● SBS-300R- ● SBS-300A-
Speed(22-84 mpm) Swivel Base Auto Feed System
Swivel (72-275 fpm)
-60° SBS-500DSA
SBS-500DSAH(Auto Swivel)
2 Way Swivel, Variable Speed
Semi Auto Saw Bow Lifting & Hydrauilc Vise
CUTTING CAPACITY
X°
0° (mm) 508 660x508 508x508
±45°(mm) 508 590x260 508x508
±60°(mm) 380 460x360 380x380

● Reducer for Auto Swivel ● Control Box

ltem Unit SBS-300 SBS-300R SBS-300A SBS-500DSA SBS-500DSAH
Main Motor/5HP
Main Motor HP 3(3-Phase) Hydraulic Motor/2HP
Coolant Pump/1/8HP
60Hz/26, 48, 69, 100 60Hz/32~96
Mt/min 50Hz/22, 40, 58, 84 50Hz/26~80
Speed
Ft/min 60Hz/86, 157, 228, 330 60Hz/106~317
50Hz/72, 131, 190, 275 50Hz/85~264
mm
Saw Blade 34x1.1x3950 41x1.3x5890
(W x T x L)
Machine mm 2057x1080x1384 2100x1140x1520 2100x1100x1400 3000x1270x1730
Dimensions
Weight NW/GW 700/760 kgs 740/800 kgs 1590/1800 kgs 1650/1860 kgs
Packing mm 1940x1140x1530 2930x1140x1981
Dimensions
