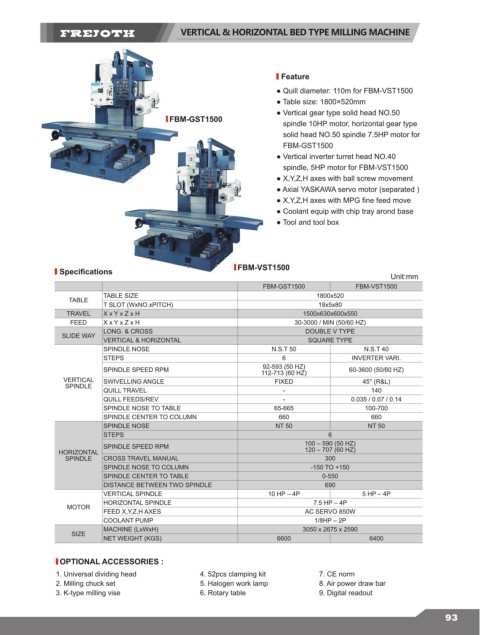

VERTICAL & HORIZONTAL BED TYPE MILLING MACHINE

Feature

● Quill diameter: 110m for FBM-VST1500
● Table size: 1800×520mm
● Vertical gear type solid head NO.50
FBM-GST1500
spindle 10HP motor, horizontal gear type
solid head NO.50 spindle 7.5HP motor for
FBM-GST1500
● Vertical inverter turret head NO.40
spindle, 5HP motor for FBM-VST1500
● X,Y,Z,H axes with ball screw movement
● Axial YASKAWA servo motor (separated )
● X,Y,Z,H axes with MPG fine feed move
● Coolant equip with chip tray arond base
● Tool and tool box

FBM-VST1500
Specifications
Unit:mm
FBM-GST1500 FBM-VST1500
TABLE SIZE 1800x520
TABLE
T SLOT (WxNO.xPITCH) 18x5x80
TRAVEL X x Y x Z x H 1500x630x600x550
FEED X x Y x Z x H 30-3000 / MIN (50/60 HZ)
LONG. & CROSS DOUBLE V TYPE
SLIDE WAY
VERTICAL & HORIZONTAL SQUARE TYPE
SPINDLE NOSE N.S.T 50 N.S.T 40
STEPS 6 INVERTER VARI.
92-593 (50 HZ)
SPINDLE SPEED RPM 112-713 (60 HZ) 60-3600 (50/60 HZ)
VERTICAL SWIVELLING ANGLE FIXED 45° (R&L)
SPINDLE
QUILL TRAVEL - 140
QUILL FEEDS/REV - 0.035 / 0.07 / 0.14
SPINDLE NOSE TO TABLE 65-665 100-700
SPINDLE CENTER TO COLUMN 660 660
SPINDLE NOSE NT 50 NT 50
STEPS 6
SPINDLE SPEED RPM 100 – 590 (50 HZ)
HORIZONTAL 120 – 707 (60 HZ)
SPINDLE CROSS TRAVEL MANUAL 300
SPINDLE NOSE TO COLUMN -150 TO +150
SPINDLE CENTER TO TABLE 0-550
DISTANCE BETWEEN TWO SPINDLE 690
VERTICAL SPINDLE 10 HP – 4P 5 HP – 4P
HORIZONTAL SPINDLE 7.5 HP – 4P
MOTOR
FEED X,Y,Z,H AXES AC SERVO 850W
COOLANT PUMP 1/8HP – 2P
MACHINE (LxWxH) 3050 x 2675 x 2590
SIZE
NET WEIGHT (KGS) 6600 6400

OPTIONAL ACCESSORIES :
1. Universal dividing head 4. 52pcs clamping kit 7. CE norm
2. Milling chuck set 5. Halogen work lamp 8. Air power draw bar
3. K-type milling vise 6. Rotary table 9. Digital readout
