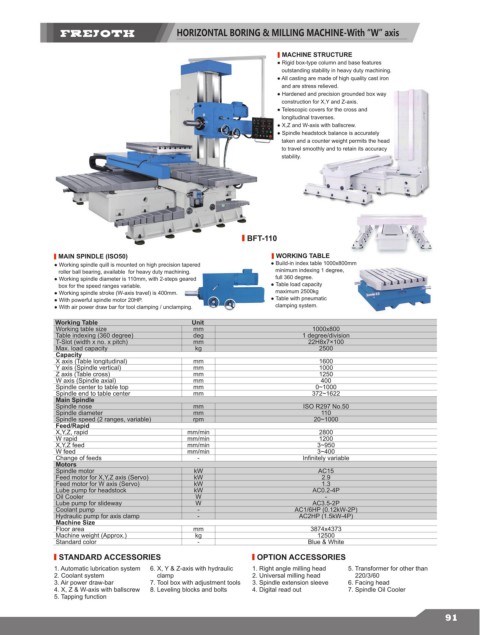

HORIZONTAL BORING & MILLING MACHINE-With “W” axis

MACHINE STRUCTURE
● Rigid box-type column and base features
outstanding stability in heavy duty machining.
● All casting are made of high quality cast iron
and are stress relieved.
● Hardened and precision grounded box way
construction for X,Y and Z-axis.
● Telescopic covers for the cross and
longitudinal traverses.
● X,Z and W-axis with ballscrew.
● Spindle headstock balance is accurately
taken and a counter weight permits the head
to travel smoothly and to retain its accuracy
stability.

BFT-110

MAIN SPINDLE (ISO50) WORKING TABLE
● Working spindle quill is mounted on high precision tapered ● Build-in index table 1000x800mm
roller ball bearing, available for heavy duty machining. minimum indexing 1 degree,
● Working spindle diameter is 110mm, with 2-steps geared full 360 degree.
box for the speed ranges variable. ● Table load capacity
● Working spindle stroke (W-axis travel) is 400mm. maximum 2500kg
● With powerful spindle motor 20HP. ● Table with pneumatic
● With air power draw bar for tool clamping / unclamping. clamping system.

Working Table Unit
Working table size mm 1000x800
Table indexing (360 degree) deg 1 degree/division
T-Slot (width x no. x pitch) mm 22H8x7×100
Max. load capacity kg 2500
Capacity
X axis (Table longitudinal) mm 1600
Y axis (Spindle vertical) mm 1000
Z axis (Table cross) mm 1250
W axis (Spindle axial) mm 400
Spindle center to table top mm 0~1000
Spindle end to table center mm 372~1622
Main Spindle
Spindle nose mm ISO R297 No.50
Spindle diameter mm 110
Spindle speed (2 ranges, variable) rpm 20~1000
Feed/Rapid
X,Y,Z, rapid mm/min 2800
W rapid mm/min 1200
X,Y,Z feed mm/min 3~950
W feed mm/min 3~400
Change of feeds - Infinitely variable
Motors
Spindle motor kW AC15
Feed motor for X,Y,Z axis (Servo) kW 2.9
Feed motor for W axis (Servo) kW 1.3
Lube pump for headstock kW AC0.2-4P
Oil Cooler W -
Lube pump for slideway W AC3.5-2P
Coolant pump - AC1/6HP (0.12kW-2P)
Hydraulic pump for axis clamp - AC2HP (1.5kW-4P)
Machine Size
Floor area mm 3874x4373
Machine weight (Approx.) kg 12500
Standard color - Blue & White
STANDARD ACCESSORIES OPTION ACCESSORIES
1. Automatic lubrication system 6. X, Y & Z-axis with hydraulic 1. Right angle milling head 5. Transformer for other than
2. Coolant system clamp 2. Universal milling head 220/3/60
3. Air power draw-bar 7. Tool box with adjustment tools 3. Spindle extension sleeve 6. Facing head
4. X, Z & W-axis with ballscrew 8. Leveling blocks and bolts 4. Digital read out 7. Spindle Oil Cooler
5. Tapping function
