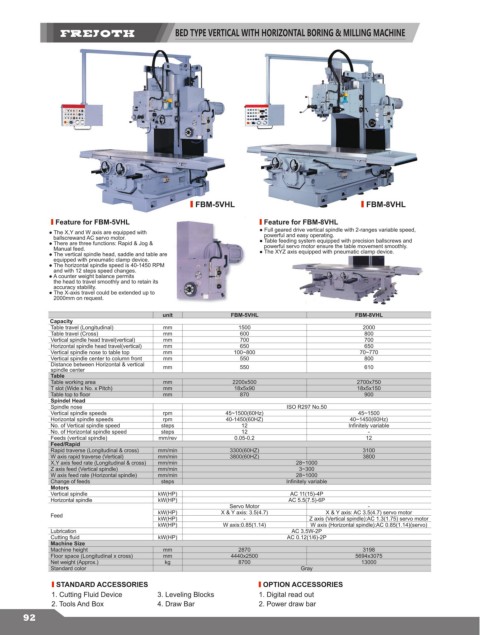

BED TYPE VERTICAL WITH HORIZONTAL BORING & MILLING MACHINE

FBM-5VHL FBM-8VHL

Feature for FBM-5VHL Feature for FBM-8VHL
● The X,Y and W axis are equipped with ● Full geared drive vertical spindle with 2-ranges variable speed,
powerful and easy operating.
ballscrewand AC servo motor. ● Table feeding system equipped with precision ballscrews and
● There are three functions: Rapid & Jog & powerful servo motor ensure the table movement smoothly.
Manual feed. ● The XYZ axis equipped with pneumatic clamp device.
● The vertical spindle head, saddle and table are
equipped with pneumatic clamp device.
● The horizontal spindle speed is 40-1450 RPM
and with 12 steps speed changes.
● A counter weight balance permits
the head to travel smoothly and to retain its
accuracy stability.
● The X-axis travel could be extended up to
2000mm on request.
unit FBM-5VHL FBM-8VHL
Capacity
Table travel (Longitudinal) mm 1500 2000
Table travel (Cross) mm 600 800
Vertical spindle head travel(vertical) mm 700 700
Horizontal spindle head travel(vertical) mm 650 650
Vertical spindle nose to table top mm 100~800 70~770
Vertical spindle center to column front mm 550 800
Distance between Horizontal & vertical
spindle center mm 550 610
Table
Table working area mm 2200x500 2700x750
T slot (Wide x No. x Pitch) mm 18x5x90 18x5x150
Table top to floor mm 870 900
Spindel Head
Spindle nose ISO R297 No.50
Vertical spindle speeds rpm 45~1500(60Hz) 45~1500
Horizontal spindle speeds rpm 40-1450(60HZ) 40~1450(60Hz)
No. of Vertical spindle speed steps 12 Infinitely variable
No. of Horizontal spindle speed steps 12 -
Feeds (vertical spindle) mm/rev 0.05-0.2 12
Feed/Rapid
Rapid traverse (Longitudinal & cross) mm/min 3300(60HZ) 3100
W axis rapid traverse (Vertical) mm/min 3800(60HZ) 3800
X,Y axis feed rate (Longitudinal & cross) mm/min 28~1000
Z axis feed (Vertical spindle) mm/min 3~300
W axis feed rate (Horizontal spindle) mm/min 28~1000
Change of feeds steps Infinitely variable
Motors
Vertical spindle kW(HP) AC 11(15)-4P
Horizontal spindle kW(HP) AC 5.5(7.5)-6P
Servo Motor -
kW(HP) X & Y axis: 3.5(4.7) X & Y axis: AC 3.5(4.7) servo motor
Feed
kW(HP) - Z axis (Vertical spindle):AC 1.3(1.75) servo motor
kW(HP) W axis:0.85(1.14) W axis (Horizontal spindle):AC 0.85(1.14)(servo)
Lubrication AC 3.5W-2P
Cutting fluid kW(HP) AC 0.12(1/6)-2P
Machine Size
Machine height mm 2870 3198
Floor space (Longitudinal x cross) mm 4440x2500 5694x3075
Net weight (Approx.) kg 8700 13000
Standard color Gray
STANDARD ACCESSORIES OPTION ACCESSORIES
1. Cutting Fluid Device 3. Leveling Blocks 1. Digital read out
2. Tools And Box 4. Draw Bar 2. Power draw bar
