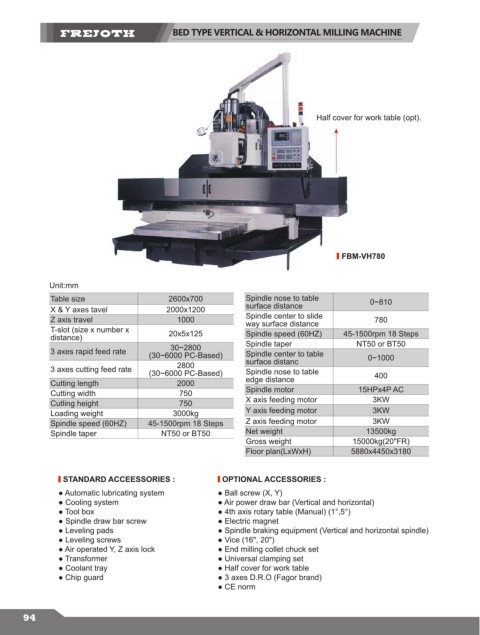

BED TYPE VERTICAL & HORIZONTAL MILLING MACHINE

Half cover for work table (opt).

FBM-VH780

Unit:mm
Table size 2600x700 Spindle nose to table 0~810
X & Y axes tavel 2000x1200 surface distance
Z axis travel 1000 Spindle center to slide 780
way surface distance
T-slot (size x number x 20x5x125
distance) Spindle speed (60HZ) 45-1500rpm 18 Steps
NT50 or BT50
Spindle taper
30~2800
3 axes rapid feed rate (30~6000 PC-Based) Spindle center to table 0~1000
2800
3 axes cutting feed rate (30~6000 PC-Based) surface distanc 400
Spindle nose to table
Cutting length 2000 edge distance
Cutting width 750 Spindle motor 15HPx4P AC
Cutling height 750 X axis feeding motor 3KW
Loading weight 3000kg Y axis feeding motor 3KW
Spindle speed (60HZ) 45-1500rpm 18 Steps Z axis feeding motor 3KW
Spindle taper NT50 or BT50 Net weight 13500kg
Gross weight 15000kg(20"FR)
Floor plan(LxWxH) 5880x4450x3180

STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :
● Automatic lubricating system ● Ball screw (X, Y)
● Cooling system ● Air power draw bar (Vertical and horizontal)
● Tool box ● 4th axis rotary table (Manual) (1°,5°)
● Spindle draw bar screw ● Electric magnet
● Leveling pads ● Spindle braking equipment (Vertical and horizontal spindle)
● Leveling screws ● Vice (16", 20")
● Air operated Y, Z axis lock ● End milling collet chuck set
● Transformer ● Universal clamping set
● Coolant tray ● Half cover for work table
● Chip guard ● 3 axes D.R.O (Fagor brand)
● CE norm
