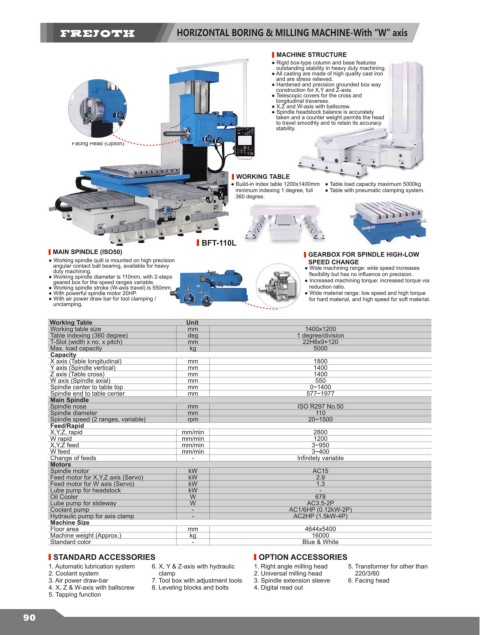

HORIZONTAL BORING & MILLING MACHINE-With “W” axis

MACHINE STRUCTURE
● Rigid box-type column and base features
outstanding stability in heavy duty machining.
● All casting are made of high quality cast iron
and are stress relieved.
● Hardened and precision grounded box way
construction for X,Y and Z-axis.
● Telescopic covers for the cross and
longitudinal traverses.
● X,Z and W-axis with ballscrew.
● Spindle headstock balance is accurately
taken and a counter weight permits the head
to travel smoothly and to retain its accuracy
stability.
Facing Head (Option)

WORKING TABLE
● Build-in index table 1200x1400mm ● Table load capacity maximum 5000kg
minimum indexing 1 degree, full ● Table with pneumatic clamping system.
360 degree.

BFT-110L
MAIN SPINDLE (ISO50) GEARBOX FOR SPINDLE HIGH-LOW
● Working spindle quill is mounted on high precision SPEED CHANGE
angular contact ball bearing, available for heavy ● Wide machining range: wide speed increases
duty machining.
● Working spindle diameter is 110mm, with 2-steps flexibility but has no influence on precision.
geared box for the speed ranges variable. ● Increased machining torque: increased torque via
● Working spindle stroke (W-axis travel) is 550mm. reduction ratio.
● With powerful spindle motor 20HP. ● Wide material range: low speed and high torque
● With air power draw bar for tool clamping / for hard material, and high speed for soft material.
unclamping.
Working Table Unit
Working table size mm 1400x1200
Table indexing (360 degree) deg 1 degree/division
T-Slot (width x no. x pitch) mm 22H8x9×120
Max. load capacity kg 5000
Capacity
X axis (Table longitudinal) mm 1800
Y axis (Spindle vertical) mm 1400
Z axis (Table cross) mm 1400
W axis (Spindle axial) mm 550
Spindle center to table top mm 0~1400
Spindle end to table center mm 577~1977
Main Spindle
Spindle nose mm ISO R297 No.50
Spindle diameter mm 110
Spindle speed (2 ranges, variable) rpm 20~1500
Feed/Rapid
X,Y,Z, rapid mm/min 2800
W rapid mm/min 1200
X,Y,Z feed mm/min 3~950
W feed mm/min 3~400
Change of feeds - Infinitely variable
Motors
Spindle motor kW AC15
Feed motor for X,Y,Z axis (Servo) kW 2.9
Feed motor for W axis (Servo) kW 1.3
Lube pump for headstock kW -
Oil Cooler W 678
Lube pump for slideway W AC3.5-2P
Coolant pump - AC1/6HP (0.12kW-2P)
Hydraulic pump for axis clamp - AC2HP (1.5kW-4P)
Machine Size
Floor area mm 4644x5400
Machine weight (Approx.) kg 16000
Standard color - Blue & White
STANDARD ACCESSORIES OPTION ACCESSORIES
1. Automatic lubrication system 6. X, Y & Z-axis with hydraulic 1. Right angle milling head 5. Transformer for other than
2. Coolant system clamp 2. Universal milling head 220/3/60
3. Air power draw-bar 7. Tool box with adjustment tools 3. Spindle extension sleeve 6. Facing head
4. X, Z & W-axis with ballscrew 8. Leveling blocks and bolts 4. Digital read out
5. Tapping function
