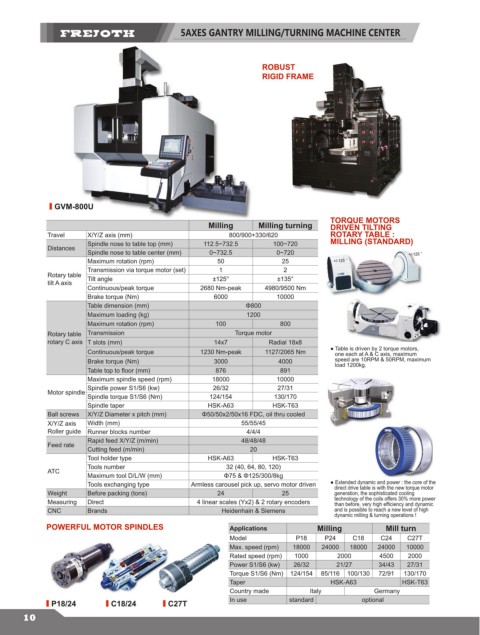

5AXES GANTRY MILLING/TURNING MACHINE CENTER

ROBUST
RIGID FRAME

GVM-800U
TORQUE MOTORS
Milling Milling turning DRIVEN TILTING
Travel X/Y/Z axis (mm) 800/900+330/620 ROTARY TABLE :
Spindle nose to table top (mm) 112.5~732.5 100~720 MILLING (STANDARD)
Distances
Spindle nose to table center (mm) 0~732.5 0~720
Maximum rotation (rpm) 50 25
Transmission via torque motor (set) 1 2
Rotary table Tilt angle ±125° ±135°
tilt A axis
Continuous/peak torque 2680 Nm-peak 4980/9500 Nm
Brake torque (Nm) 6000 10000
Table dimension (mm) Φ800
Maximum loading (kg) 1200
Maximum rotation (rpm) 100 800
Rotary table Transmission Torque motor
rotary C axis T slots (mm) 14x7 Radial 18x8
Continuous/peak torque 1230 Nm-peak 1127/2065 Nm ● Table is driven by 2 torque motors,
one each at A & C axis, maximum
Brake torque (Nm) 3000 4000 speed are 10RPM & 50RPM, maximum
load 1200kg.
Table top to floor (mm) 876 891
Maximum spindle speed (rpm) 18000 10000
Spindle power S1/S6 (kw) 26/32 27/31
Motor spindle
Spindle torque S1/S6 (Nm) 124/154 130/170
Spindle taper HSK-A63 HSK-T63
Ball screws X/Y/Z Diameter x pitch (mm) Φ50/50x2/50x16 FDC, oil thru cooled
X/Y/Z axis Width (mm) 55/55/45
Roller guide Runner blocks number 4/4/4
Rapid feed X/Y/Z (m/min) 48/48/48
Feed rate
Cutting feed (m/min) 20
Tool holder type HSK-A63 HSK-T63
Tools number 32 (40, 64, 80, 120)
ATC
Maximum tool D/L/W (mm) Φ75 & Φ125/300/8kg
Tools exchanging type Armless carousel pick up, servo motor driven ● Extended dynamic and power : the core of the
direct drive table is with the new torque motor
Weight Before packing (tons) 24 25 generation, the sophisticated cooling
Measuring Direct 4 linear scales (Yx2) & 2 rotary encoders technology of the coils offers 30% more power
than before, very high efficiency and dynamic
CNC Brands Heidenhain & Siemens and is possible to reach a new level of high
dynamic milling & turning operations !

POWERFUL MOTOR SPINDLES Applications Milling Mill turn
Model P18 P24 C18 C24 C27T
Max. speed (rpm) 18000 24000 18000 24000 10000
Rated speed (rpm) 1000 2000 4500 2000
Power S1/S6 (kw) 26/32 21/27 34/43 27/31
Torque S1/S6 (Nm) 124/154 85/116 100/130 72/91 130/170
Taper HSK-A63 HSK-T63
Country made Italy Germany
P18/24 C18/24 C27T In use standard optional
10
