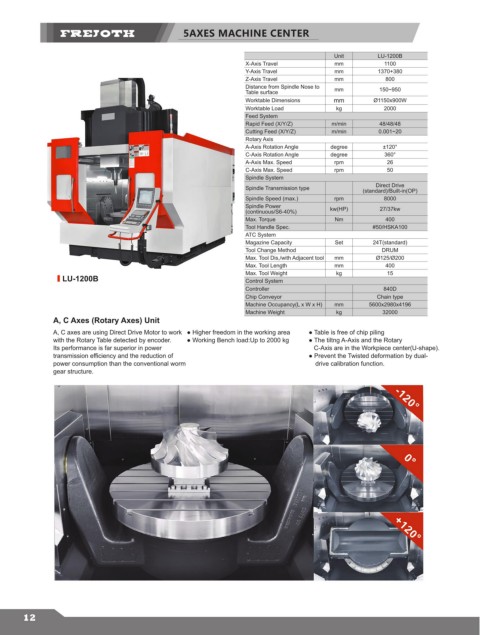

5AXES MACHINE CENTER

Unit LU-1200B
X-Axis Travel mm 1100
Y-Axis Travel mm 1370+380
Z-Axis Travel mm 800
Distance from Spindle Nose to
Table surface mm 150~950
Worktable Dimensions mm Ø1150x900W
Worktable Load kg 2000
Feed System
Rapid Feed (X/Y/Z) m/min 48/48/48
Cutting Feed (X/Y/Z) m/min 0.001~20
Rotary Axis
A-Axis Rotation Angle degree ±120°
C-Axis Rotation Angle degree 360°
A-Axis Max. Speed rpm 26
C-Axis Max. Speed rpm 50
Spindle System
Direct Drive
Spindle Transmission type (standard)/Built-in(OP)
Spindle Speed (max.) rpm 8000
Spindle Power
(continuous/S6-40%) kw(HP) 27/37kw
Max. Torque Nm 400
Tool Handle Spec. #50/HSKA100
ATC System
Magazine Capacity Set 24T(standard)
Tool Change Method DRUM
Max. Tool Dis,/with Adjacent tool mm Ø125/Ø200
Max. Tool Length mm 400
Max. Tool Weight kg 15
LU-1200B Control System
Controller 840D
Chip Conveyor Chain type
Machine Occupancy(L x W x H) mm 5600x2980x4196
Machine Weight kg 32000
A, C Axes (Rotary Axes) Unit
A, C axes are using Direct Drive Motor to work ● Higher freedom in the working area ● Table is free of chip piling
with the Rotary Table detected by encoder. ● Working Bench load:Up to 2000 kg ● The tiltng A-Axis and the Rotary
Its performance is far superior in power C-Axis are in the Workpiece center(U-shape).
transmission efficiency and the reduction of ● Prevent the Twisted deformation by dual-
power consumption than the conventional worm drive calibration function.
gear structure.
