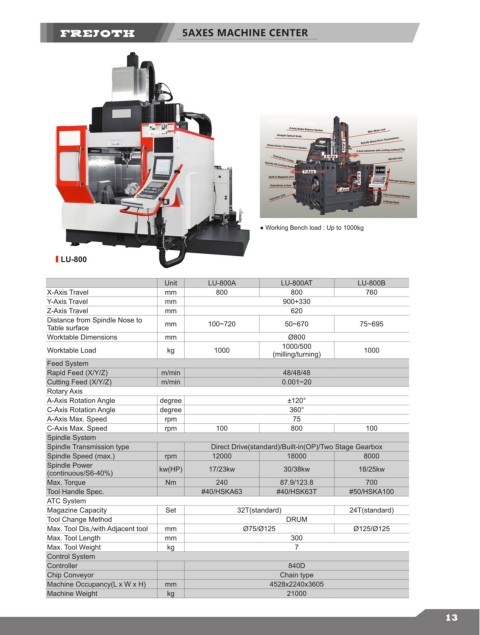

5AXES MACHINE CENTER

● Working Bench load : Up to 1000kg

LU-800

Unit LU-800A LU-800AT LU-800B
X-Axis Travel mm 800 800 760
Y-Axis Travel mm 900+330
Z-Axis Travel mm 620
Distance from Spindle Nose to mm 100~720 50~670 75~695
Table surface
Worktable Dimensions mm Ø800
1000/500
Worktable Load kg 1000 1000
(milling/turning)
Feed System
Rapid Feed (X/Y/Z) m/min 48/48/48
Cutting Feed (X/Y/Z) m/min 0.001~20
Rotary Axis
A-Axis Rotation Angle degree ±120°
C-Axis Rotation Angle degree 360°
A-Axis Max. Speed rpm 75
C-Axis Max. Speed rpm 100 800 100
Spindle System
Spindle Transmission type Direct Drive(standard)/Built-in(OP)/Two Stage Gearbox
Spindle Speed (max.) rpm 12000 18000 8000
Spindle Power kw(HP) 17/23kw 30/38kw 18/25kw
(continuous/S6-40%)
Max. Torque Nm 240 87.9/123.8 700
Tool Handle Spec. #40/HSKA63 #40/HSK63T #50/HSKA100
ATC System
Magazine Capacity Set 32T(standard) 24T(standard)
Tool Change Method DRUM
Max. Tool Dis,/with Adjacent tool mm Ø75/Ø125 Ø125/Ø125
Max. Tool Length mm 300
Max. Tool Weight kg 7
Control System
Controller 840D
Chip Conveyor Chain type
Machine Occupancy(L x W x H) mm 4528x2240x3605
Machine Weight kg 21000
