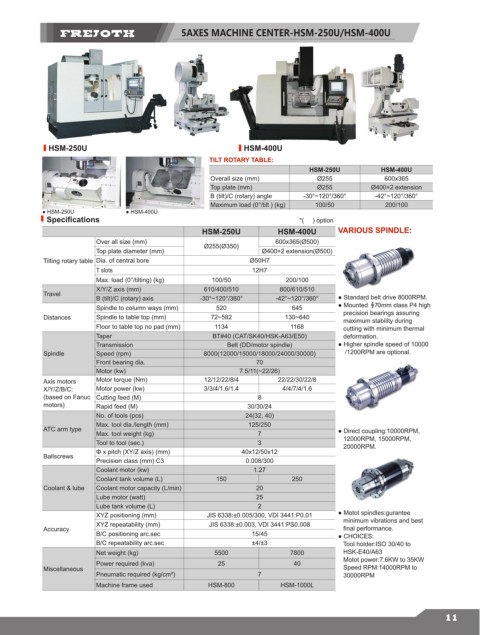

5AXES MACHINE CENTER-HSM-250U/HSM-400U

HSM-250U HSM-400U
TILT ROTARY TABLE:
HSM-250U HSM-400U
Overall size (mm) Ø255 600x365
Top plate (mm) Ø255 Ø400+2 extension
B (tilt)/C (rotary) angle -30°~120°/360° -42°~120°/360°
Maximum load (0°/tilt ) (kg) 100/50 200/100
● HSM-250U ● HSM-400U
Specifications *( ) option
HSM-250U HSM-400U VARIOUS SPINDLE:
Over all size (mm) Ø255(Ø350) 600x365(Ø500)
Top plate diameter (mm) Ø400+2 extension(Ø500)
Tilting rotary table Dia. of central bore Ø50H7
T slots 12H7
Max. load (0°/tilting) (kg) 100/50 200/100
X/Y/Z axis (mm) 610/400/510 800/610/510
Travel
B (tilt)/C (rotary) axis -30°~120°/360° -42°~120°/360° ● Standard belt drive 8000RPM.
Spindle to column ways (mm) 520 645 ● Mounted ∮70mm class P4 high
Distances Spindle to table top (mm) 72~582 130~640 precision bearings assuring
maximum stability during
Floor to table top no pad (mm) 1134 1168 cutting with minimum thermal
Taper BT#40 (CAT/SK40/HSK-A63/E50) deformation.
Transmission Belt (DD/motor spindle) ● Higher spindle speed of 10000
Spindle Speed (rpm) 8000(12000/15000/18000/24000/30000) /1200RPM are optional.
Front bearing dia. 70
Motor (kw) 7.5/11(~22/26)
Axis motors Motor torque (Nm) 12/12/22/8/4 22/22/30/22/8
X/Y/Z/B/C: Motor power (kw) 3/3/4/1.6/1.4 4/4/7/4/1.6
(based on Fanuc Cutting feed (M) 8
motors) Rapid feed (M) 30/30/24
No. of tools (pcs) 24(32, 40)
Max. tool dia./length (mm) 125/250
ATC arm type ● Direct coupling:10000RPM,
Max. tool weight (kg) 7
Tool to tool (sec.) 3 12000RPM, 15000RPM,
20000RPM.
Φ x pitch (XY/Z axis) (mm) 40x12/50x12
Ballscrews
Precision class (mm) C3 0.008/300
Coolant motor (kw) 1.27
Coolant tank volume (L) 150 250
Coolant & lube Coolant motor capacity (L/min) 20
Lube motor (watt) 25
Lube tank volume (L) 2
XYZ positioning (mm) JIS 6338:±0.005/300, VDI 3441:P0.01 ● Motot spindles:gurantee
XYZ repeatability (mm) JIS 6338:±0.003, VDI 3441:PS0.008 minimum vibrations and best
Accuracy final performance.
B/C positioning arc.sec 15/45 ● CHOICES:
B/C repeatability arc.sec ±4/±3 Tool holder:ISO 30/40 to
Net weight (kg) 5500 7800 HSK-E40/A63
Power required (kva) 25 40 Motot power:7.6KW to 35KW
Miscellaneous Speed RPM:14000RPM to
Pneumatic required (kg/cm²) 7 30000RPM
Machine frame used HSM-800 HSM-1000L
