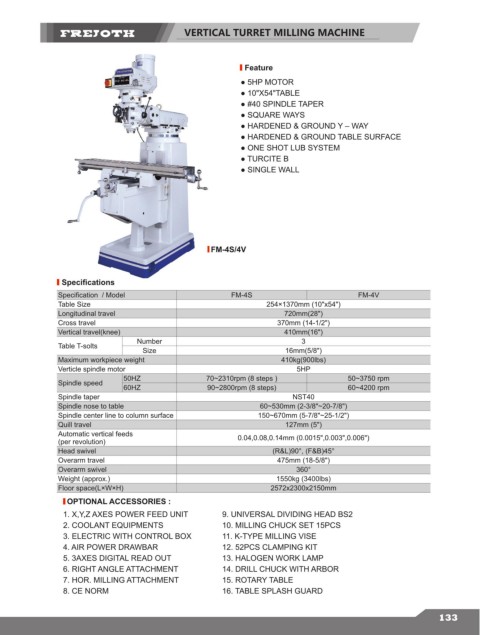

VERTICAL TURRET MILLING MACHINE

Feature
● 5HP MOTOR
● 10"X54"TABLE
● #40 SPINDLE TAPER
● SQUARE WAYS
● HARDENED & GROUND Y – WAY
● HARDENED & GROUND TABLE SURFACE
● ONE SHOT LUB SYSTEM
● TURCITE B
● SINGLE WALL

FM-4S/4V

Specifications
Specification / Model FM-4S FM-4V
Table Size 254×1370mm (10"x54")
Longitudinal travel 720mm(28")
Cross travel 370mm (14-1/2")
Vertical travel(knee) 410mm(16")
Number 3
Table T-solts
Size 16mm(5/8")
Maximum workpiece weight 410kg(900lbs)
Verticle spindle motor 5HP
50HZ 70~2310rpm (8 steps ) 50~3750 rpm
Spindle speed
60HZ 90~2800rpm (8 steps) 60~4200 rpm
Spindle taper NST40
Spindle nose to table 60~530mm (2-3/8"~20-7/8")
Spindle center line to column surface 150~670mm (5-7/8"~25-1/2")
Quill travel 127mm (5")
Automatic vertical feeds 0.04,0.08,0.14mm (0.0015",0.003",0.006")
(per revolution)
Head swivel (R&L)90°, (F&B)45°
Overarm travel 475mm (18-5/8")
Overarm swivel 360°
Weight (approx.) 1550kg (3400lbs)
Floor space(L×W×H) 2572x2300x2150mm
OPTIONAL ACCESSORIES :
1. X,Y,Z AXES POWER FEED UNIT 9. UNIVERSAL DIVIDING HEAD BS2
2. COOLANT EQUIPMENTS 10. MILLING CHUCK SET 15PCS
3. ELECTRIC WITH CONTROL BOX 11. K-TYPE MILLING VISE
4. AIR POWER DRAWBAR 12. 52PCS CLAMPING KIT
5. 3AXES DIGITAL READ OUT 13. HALOGEN WORK LAMP
6. RIGHT ANGLE ATTACHMENT 14. DRILL CHUCK WITH ARBOR
7. HOR. MILLING ATTACHMENT 15. ROTARY TABLE
8. CE NORM 16. TABLE SPLASH GUARD
