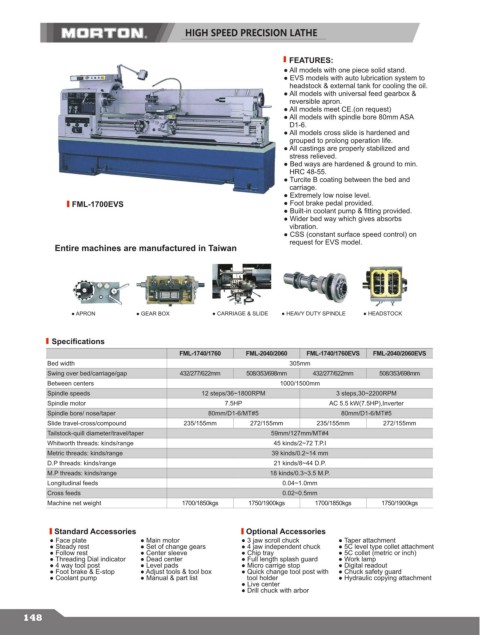

HIGH SPEED PRECISION LATHE

FEATURES:
● All models with one piece solid stand.
● EVS models with auto lubrication system to
headstock & external tank for cooling the oil.
● All models with universal feed gearbox &
reversible apron.
● All models meet CE.(on request)
● All models with spindle bore 80mm ASA
D1-6.
● All models cross slide is hardened and
grouped to prolong operation life.
● All castings are properly stabilized and
stress relieved.
● Bed ways are hardened & ground to min.
HRC 48-55.
● Turcite B coating between the bed and
carriage.
● Extremely low noise level.
FML-1700EVS ● Foot brake pedal provided.
● Built-in coolant pump & fitting provided.
● Wider bed way which gives absorbs
vibration.
● CSS (constant surface speed control) on
request for EVS model.
Entire machines are manufactured in Taiwan

● APRON ● GEAR BOX ● CARRIAGE & SLIDE ● HEAVY DUTY SPINDLE ● HEADSTOCK

Specifications
FML-1740/1760 FML-2040/2060 FML-1740/1760EVS FML-2040/2060EVS
Bed width 305mm
Swing over bed/carriage/gap 432/277/622mm 508/353/698mm 432/277/622mm 508/353/698mm
Between centers 1000/1500mm
Spindle speeds 12 steps/36~1800RPM 3 steps,30~2200RPM
Spindle motor 7.5HP AC 5.5 kW(7.5HP),Inverter
Spindle bore/ nose/taper 80mm/D1-6/MT#5 80mm/D1-6/MT#5
Slide travel-cross/compound 235/155mm 272/155mm 235/155mm 272/155mm
Tailstock-quill diameter/travel/taper 59mm/127mm/MT#4
Whitworth threads: kinds/range 45 kinds/2~72 T.P.I
Metric threads: kinds/range 39 kinds/0.2~14 mm
D.P threads: kinds/range 21 kinds/8~44 D.P.
M.P threads: kinds/range 18 kinds/0.3~3.5 M.P.
Longitudinal feeds 0.04~1.0mm
Cross feeds 0.02~0.5mm
Machine net weight 1700/1850kgs 1750/1900kgs 1700/1850kgs 1750/1900kgs

Standard Accessories Optional Accessories
● Face plate ● Main motor ● 3 jaw scroll chuck ● Taper attachment
● Steady rest ● Set of change gears ● 4 jaw independent chuck ● 5C level type collet attachment
● Follow rest ● Center sleeve ● Chip tray ● 5C collet (metric or inch)
● Threading Dial indicator ● Dead center ● Full length splash guard ● Work lamp
● 4 way tool post ● Level pads ● Micro carrige stop ● Digital readout
● Foot brake & E-stop ● Adjust tools & tool box ● Quick change tool post with ● Chuck safety guard
● Coolant pump ● Manual & part list tool holder ● Hydraulic copying attachment
● Live center
● Drill chuck with arbor
