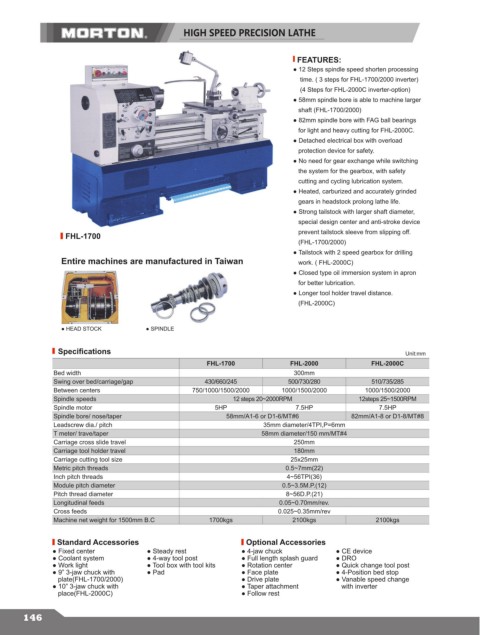

HIGH SPEED PRECISION LATHE

FEATURES:
● 12 Steps spindle speed shorten processing
time. ( 3 steps for FHL-1700/2000 inverter)
(4 Steps for FHL-2000C inverter-option)
● 58mm spindle bore is able to machine larger
shaft (FHL-1700/2000)
● 82mm spindle bore with FAG ball bearings
for light and heavy cutting for FHL-2000C.
● Detached electrical box with overload
protection device for safety.
● No need for gear exchange while switching
the system for the gearbox, with safety
cutting and cycling lubrication system.
● Heated, carburized and accurately grinded
gears in headstock prolong lathe life.
● Strong tailstock with larger shaft diameter,
special design center and anti-stroke device
FHL-1700 prevent tailstock sleeve from slipping off.
(FHL-1700/2000)
● Tailstock with 2 speed gearbox for drilling
Entire machines are manufactured in Taiwan work. ( FHL-2000C)
● Closed type oil immersion system in apron
for better lubrication.
● Longer tool holder travel distance.
(FHL-2000C)

● HEAD STOCK ● SPINDLE

Specifications Unit:mm
FHL-1700 FHL-2000 FHL-2000C
Bed width 300mm
Swing over bed/carriage/gap 430/660/245 500/730/280 510/735/285
Between centers 750/1000/1500/2000 1000/1500/2000 1000/1500/2000
Spindle speeds 12 steps 20~2000RPM 12steps 25~1500RPM
Spindle motor 5HP 7.5HP 7.5HP
Spindle bore/ nose/taper 58mm/A1-6 or D1-6/MT#6 82mm/A1-8 or D1-8/MT#8
Leadscrew dia./ pitch 35mm diameter/4TPI,P=6mm
T meter/ trave/taper 58mm diameter/150 mm/MT#4
Carriage cross slide travel 250mm
Carriage tool holder travel 180mm
Carriage cutting tool size 25x25mm
Metric pitch threads 0.5~7mm(22)
Inch pitch threads 4~56TPI(36)
Module pitch diameter 0.5~3.5M.P.(12)
Pitch thread diameter 8~56D.P.(21)
Longitudinal feeds 0.05~0.70mm/rev.
Cross feeds 0.025~0.35mm/rev
Machine net weight for 1500mm B.C 1700kgs 2100kgs 2100kgs

Standard Accessories Optional Accessories
● Fixed center ● Steady rest ● 4-jaw chuck ● CE device
● Coolant system ● 4-way tool post ● Full length splash guard ● DRO
● Work light ● Tool box with tool kits ● Rotation center ● Quick change tool post
● 9” 3-jaw chuck with ● Pad ● Face plate ● 4-Position bed stop
plate(FHL-1700/2000) ● Drive plate ● Vanable speed change
● 10” 3-jaw chuck with ● Taper attachment with inverter
place(FHL-2000C) ● Follow rest
