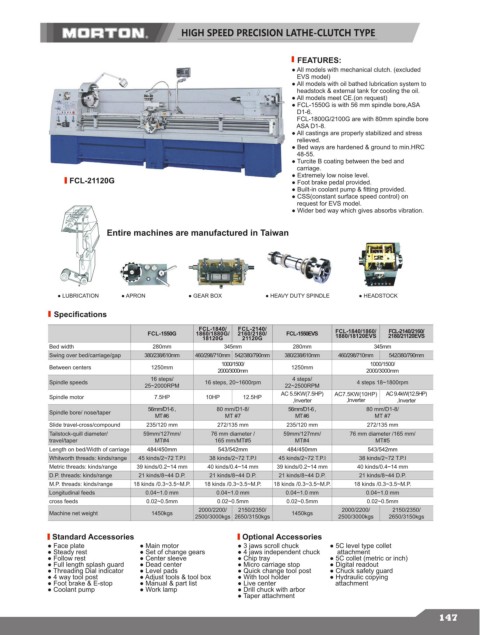

HIGH SPEED PRECISION LATHE-CLUTCH TYPE

FEATURES:
● All models with mechanical clutch. (excluded
EVS model)
● All models with oil bathed lubrication system to
headstock & external tank for cooling the oil.
● All models meet CE.(on request)
● FCL-1550G is with 56 mm spindle bore,ASA
D1-6.
FCL-1800G/2100G are with 80mm spindle bore
ASA D1-8.
● All castings are properly stabilized and stress
relieved.
● Bed ways are hardened & ground to min.HRC
48-55.
● Turcite B coating between the bed and
carriage.
● Extremely low noise level.
FCL-21120G ● Foot brake pedal provided.
● Built-in coolant pump & fitting provided.
● CSS(constant surface speed control) on
request for EVS model.
● Wider bed way which gives absorbs vibration.

Entire machines are manufactured in Taiwan

● LUBRICATION ● APRON ● GEAR BOX ● HEAVY DUTY SPINDLE ● HEADSTOCK
Specifications

FCL-1840/ FCL-2140/
FCL-1550G 1860/1880G/ 2160/2180/ FCL-1550EVS FCL-1840/1860/ FCL-2140/2160/
1880/18120EVS
2180/21120EVS
18120G 21120G
Bed width 280mm 345mm 280mm 345mm
Swing over bed/carriage/gap 380/238/610mm 460/298/710mm 542/380/790mm 380/238/610mm 460/298/710mm 542/380/790mm
1000/1500/ 1000/1500/
Between centers 1250mm 2000/3000mm 1250mm 2000/3000mm
16 steps/ 4 steps/
Spindle speeds 16 steps, 20~1600rpm 4 steps 18~1800rpm
25~2000RPM 22~2500RPM
AC 5.5KW(7.5HP) AC7.5KW(10HP) AC 9.4kW(12.5HP)
Spindle motor 7.5HP 10HP 12.5HP ,Inverter ,Inverter ,Inverter
56mm/D1-6 , 80 mm/D1-8/ 56mm/D1-6 , 80 mm/D1-8/
Spindle bore/ nose/taper
MT #6 MT #7 MT #6 MT #7
Slide travel-cross/compound 235/120 mm 272/135 mm 235/120 mm 272/135 mm
Tailstock-quill diameter/ 59mm/127mm/ 76 mm diameter / 59mm/127mm/ 76 mm diameter /165 mm/
travel/taper MT#4 165 mm/MT#5 MT#4 MT#5
Length on bed/Width of carriage 484/450mm 543/542mm 484/450mm 543/542mm
Whitworth threads: kinds/range 45 kinds/2~72 T.P.I 38 kinds/2~72 T.P.I 45 kinds/2~72 T.P.I 38 kinds/2~72 T.P.I
Metric threads: kinds/range 39 kinds/0.2~14 mm 40 kinds/0.4~14 mm 39 kinds/0.2~14 mm 40 kinds/0.4~14 mm
D.P. threads: kinds/range 21 kinds/8~44 D.P. 21 kinds/8~44 D.P. 21 kinds/8~44 D.P. 21 kinds/8~44 D.P.
M.P. threads: kinds/range 18 kinds /0.3~3.5~M.P. 18 kinds /0.3~3.5~M.P. 18 kinds /0.3~3.5~M.P. 18 kinds /0.3~3.5~M.P.
Longitudinal feeds 0.04~1.0 mm 0.04~1.0 mm 0.04~1.0 mm 0.04~1.0 mm
cross feeds 0.02~0.5mm 0.02~0.5mm 0.02~0.5mm 0.02~0.5mm
2000/2200/ 2150/2350/ 2000/2200/ 2150/2350/
Machine net weight 1450kgs 1450kgs
2500/3000kgs 2650/3150kgs 2500/3000kgs 2650/3150kgs
Standard Accessories Optional Accessories
● Face plate ● Main motor ● 3 jaws scroll chuck ● 5C level type collet
● Steady rest ● Set of change gears ● 4 jaws independent chuck attachment
● Follow rest ● Center sleeve ● Chip tray ● 5C collet (metric or inch)
● Full length splash guard ● Dead center ● Micro carriage stop ● Digital readout
● Threading Dial indicator ● Level pads ● Quick change tool post ● Chuck safety guard
● 4 way tool post ● Adjust tools & tool box ● With tool holder ● Hydraulic copying
● Foot brake & E-stop ● Manual & part list ● Live center attachment
● Coolant pump ● Work lamp ● Drill chuck with arbor
● Taper attachment
