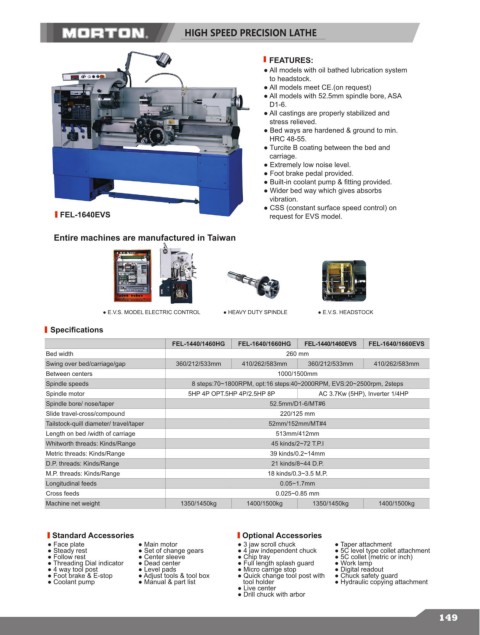

HIGH SPEED PRECISION LATHE

FEATURES: FEATURES:
● All models with oil bathed lubrication system
to headstock.
● All models meet CE.(on request)
● All models with 52.5mm spindle bore, ASA
D1-6.
● All castings are properly stabilized and
stress relieved.
● Bed ways are hardened & ground to min.
HRC 48-55.
● Turcite B coating between the bed and
carriage.
● Extremely low noise level.
● Foot brake pedal provided.
● Built-in coolant pump & fitting provided.
● Wider bed way which gives absorbs
vibration.
● CSS (constant surface speed control) on
FEL-1640EVS request for EVS model.

Entire machines are manufactured in Taiwan

● E.V.S. MODEL ELECTRIC CONTROL ● HEAVY DUTY SPINDLE ● E.V.S. HEADSTOCK

Specifications
FEL-1440/1460HG FEL-1640/1660HG FEL-1440/1460EVS FEL-1640/1660EVS
Bed width 260 mm
Swing over bed/carriage/gap 360/212/533mm 410/262/583mm 360/212/533mm 410/262/583mm
Between centers 1000/1500mm
Spindle speeds 8 steps:70~1800RPM, opt:16 steps:40~2000RPM, EVS:20~2500rpm, 2steps
Spindle motor 5HP 4P OPT.5HP 4P/2.5HP 8P AC 3.7Kw (5HP), Inverter 1/4HP
Spindle bore/ nose/taper 52.5mm/D1-6/MT#6
Slide travel-cross/compound 220/125 mm
Tailstock-quill diameter/ travel/taper 52mm/152mm/MT#4
Length on bed /width of carriage 513mm/412mm
Whitworth threads: Kinds/Range 45 kinds/2~72 T.P.I
Metric threads: Kinds/Range 39 kinds/0.2~14mm
D.P. threads: Kinds/Range 21 kinds/8~44 D.P.
M.P. threads: Kinds/Range 18 kinds/0.3~3.5 M.P.
Longitudinal feeds 0.05~1.7mm
Cross feeds 0.025~0.85 mm
Machine net weight 1350/1450kg 1400/1500kg 1350/1450kg 1400/1500kg

Standard Accessories Optional Accessories
● Face plate ● Main motor ● 3 jaw scroll chuck ● Taper attachment
● Steady rest ● Set of change gears ● 4 jaw independent chuck ● 5C level type collet attachment
● Follow rest ● Center sleeve ● Chip tray ● 5C collet (metric or inch)
● Threading Dial indicator ● Dead center ● Full length splash guard ● Work lamp
● 4 way tool post ● Level pads ● Micro carrige stop ● Digital readout
● Foot brake & E-stop ● Adjust tools & tool box ● Quick change tool post with ● Chuck safety guard
● Coolant pump ● Manual & part list tool holder ● Hydraulic copying attachment
● Live center
● Drill chuck with arbor
