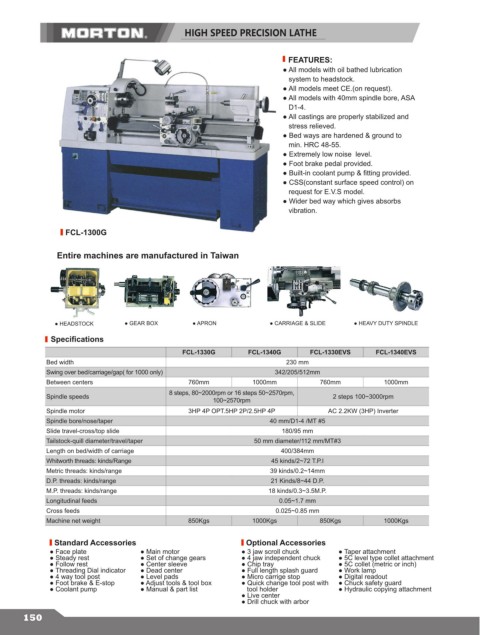

HIGH SPEED PRECISION LATHE

FEATURES:
● All models with oil bathed lubrication
system to headstock.
● All models meet CE.(on request).
● All models with 40mm spindle bore, ASA
D1-4.
● All castings are properly stabilized and
stress relieved.
● Bed ways are hardened & ground to
min. HRC 48-55.
● Extremely low noise level.
● Foot brake pedal provided.
● Built-in coolant pump & fitting provided.
● CSS(constant surface speed control) on
request for E.V.S model.
● Wider bed way which gives absorbs
vibration.

FCL-1300G

Entire machines are manufactured in Taiwan

● HEADSTOCK ● GEAR BOX ● APRON ● CARRIAGE & SLIDE ● HEAVY DUTY SPINDLE
Specifications

FCL-1330G FCL-1340G FCL-1330EVS FCL-1340EVS
Bed width 230 mm
Swing over bed/carriage/gap( for 1000 only) 342/205/512mm
Between centers 760mm 1000mm 760mm 1000mm
8 steps, 80~2000rpm or 16 steps 50~2570rpm,
Spindle speeds 2 steps 100~3000rpm
100~2570rpm
Spindle motor 3HP 4P OPT.5HP 2P/2.5HP 4P AC 2.2KW (3HP) Inverter
Spindle bore/nose/taper 40 mm/D1-4 /MT #5
Slide travel-cross/top slide 180/95 mm
Tailstock-quill diameter/travel/taper 50 mm diameter/112 mm/MT#3
Length on bed/width of carriage 400/384mm
Whitworth threads: kinds/Range 45 kinds/2~72 T.P.I
Metric threads: kinds/range 39 kinds/0.2~14mm
D.P. threads: kinds/range 21 Kinds/8~44 D.P.
M.P. threads: kinds/range 18 kinds/0.3~3.5M.P.
Longitudinal feeds 0.05~1.7 mm
Cross feeds 0.025~0.85 mm
Machine net weight 850Kgs 1000Kgs 850Kgs 1000Kgs

Standard Accessories Optional Accessories
● Face plate ● Main motor ● 3 jaw scroll chuck ● Taper attachment
● Steady rest ● Set of change gears ● 4 jaw independent chuck ● 5C level type collet attachment
● Follow rest ● Center sleeve ● Chip tray ● 5C collet (metric or inch)
● Threading Dial indicator ● Dead center ● Full length splash guard ● Work lamp
● 4 way tool post ● Level pads ● Micro carrige stop ● Digital readout
● Foot brake & E-stop ● Adjust tools & tool box ● Quick change tool post with ● Chuck safety guard
● Coolant pump ● Manual & part list tool holder ● Hydraulic copying attachment
● Live center
● Drill chuck with arbor
