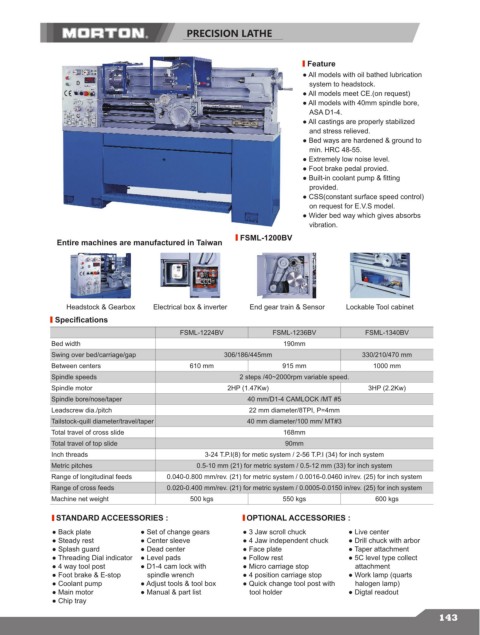

PRECISION LATHE

Feature
● All models with oil bathed lubrication
system to headstock.
● All models meet CE.(on request)
● All models with 40mm spindle bore,
ASA D1-4.
● All castings are properly stabilized
and stress relieved.
● Bed ways are hardened & ground to
min. HRC 48-55.
● Extremely low noise level.
● Foot brake pedal provied.
● Built-in coolant pump & fitting
provided.
● CSS(constant surface speed control)
on request for E.V.S model.
● Wider bed way which gives absorbs
vibration.
FSML-1200BV
Entire machines are manufactured in Taiwan

Headstock & Gearbox Electrical box & inverter End gear train & Sensor Lockable Tool cabinet
Specifications
FSML-1224BV FSML-1236BV FSML-1340BV
Bed width 190mm
Swing over bed/carriage/gap 306/186/445mm 330/210/470 mm
Between centers 610 mm 915 mm 1000 mm
Spindle speeds 2 steps /40~2000rpm variable speed.
Spindle motor 2HP (1.47Kw) 3HP (2.2Kw)
Spindle bore/nose/taper 40 mm/D1-4 CAMLOCK /MT #5
Leadscrew dia./pitch 22 mm diameter/8TPI, P=4mm
Tailstock-quill diameter/travel/taper 40 mm diameter/100 mm/ MT#3
Total travel of cross slide 168mm
Total travel of top slide 90mm
Inch threads 3-24 T.P.I(8) for metic system / 2-56 T.P.I (34) for inch system
Metric pitches 0.5-10 mm (21) for metric system / 0.5-12 mm (33) for inch system
Range of longitudinal feeds 0.040-0.800 mm/rev. (21) for metric system / 0.0016-0.0460 in/rev. (25) for inch system
Range of cross feeds 0.020-0.400 mm/rev. (21) for metric system / 0.0005-0.0150 in/rev. (25) for inch system
Machine net weight 500 kgs 550 kgs 600 kgs

STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :
● Back plate ● Set of change gears ● 3 Jaw scroll chuck ● Live center
● Steady rest ● Center sleeve ● 4 Jaw independent chuck ● Drill chuck with arbor
● Splash guard ● Dead center ● Face plate ● Taper attachment
● Threading Dial indicator ● Level pads ● Follow rest ● 5C level type collect
● 4 way tool post ● D1-4 cam lock with ● Micro carriage stop attachment
● Foot brake & E-stop spindle wrench ● 4 position carriage stop ● Work lamp (quarts
● Coolant pump ● Adjust tools & tool box ● Quick change tool post with halogen lamp)
● Main motor ● Manual & part list tool holder ● Digtal readout
● Chip tray
