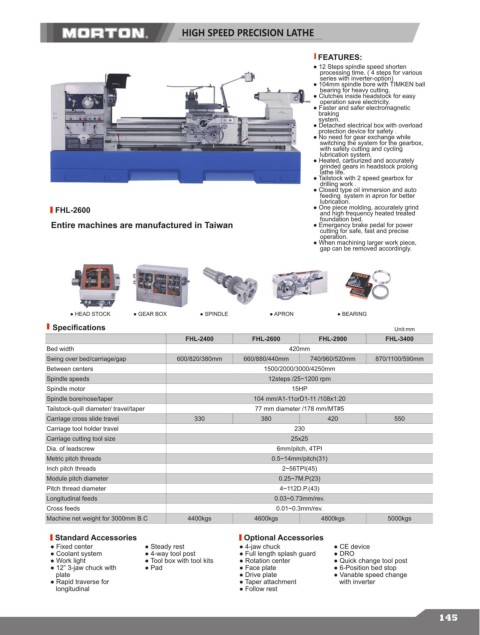

HIGH SPEED PRECISION LATHE

FEATURES:
● 12 Steps spindle speed shorten
processing time. ( 4 steps for various
series with inverter-option)
● 104mm spindle bore with TIMKEN ball
bearing for heavy cutting.
● Clutches inside headstock for easy
operation save electricity.
● Faster and safer electromagnetic
braking
system.
● Detached electrical box with overload
protection device for safety .
● No need for gear exchange while
switching the system for the gearbox,
with safety cutting and cycling
lubrication system.
● Heated, carburized and accurately
grinded gears in headstock prolong
lathe life.
● Tailstock with 2 speed gearbox for
drilling work .
● Closed type oil immersion and auto
feeding system in apron for better
lubrication.
FHL-2600 ● One piece molding, accurately grind
and high frequency heated treated
foundation bed.
Entire machines are manufactured in Taiwan ● Emergency brake pedal for power
cutting for safe, fast and precise
operation.
● When machining larger work piece,
gap can be removed accordingly.

● HEAD STOCK ● GEAR BOX ● SPINDLE ● APRON ● BEARING
Specifications Unit:mm
FHL-2400 FHL-2600 FHL-2900 FHL-3400
Bed width 420mm
Swing over bed/carriage/gap 600/820/380mm 660/880/440mm 740/960/520mm 870/1100/590mm
Between centers 1500/2000/3000/4250mm
Spindle speeds 12steps /25~1200 rpm
Spindle motor 15HP
Spindle bore/nose/taper 104 mm/A1-11orD1-11 /108x1:20
Tailstock-quill diameter/ travel/taper 77 mm diameter /178 mm/MT#5
Carriage cross slide travel 330 380 420 550
Carriage tool holder travel 230
Carriage cutting tool size 25x25
Dia. of leadscrew 6mm/pitch, 4TPI
Metric pitch threads 0.5~14mm/pitch(31)
Inch pitch threads 2~56TPI(45)
Module pitch diameter 0.25~7M.P(23)
Pitch thread diameter 4~112D.P.(43)
Longitudinal feeds 0.03~0.73mm/rev.
Cross feeds 0.01~0.3mm/rev.
Machine net weight for 3000mm B.C 4400kgs 4600kgs 4800kgs 5000kgs

Standard Accessories Optional Accessories
● Fixed center ● Steady rest ● 4-jaw chuck ● CE device
● Coolant system ● 4-way tool post ● Full length splash guard ● DRO
● Work light ● Tool box with tool kits ● Rotation center ● Quick change tool post
● 12” 3-jaw chuck with ● Pad ● Face plate ● 6-Position bed stop
plate ● Drive plate ● Vanable speed change
● Rapid traverse for ● Taper attachment with inverter
longitudinal ● Follow rest
