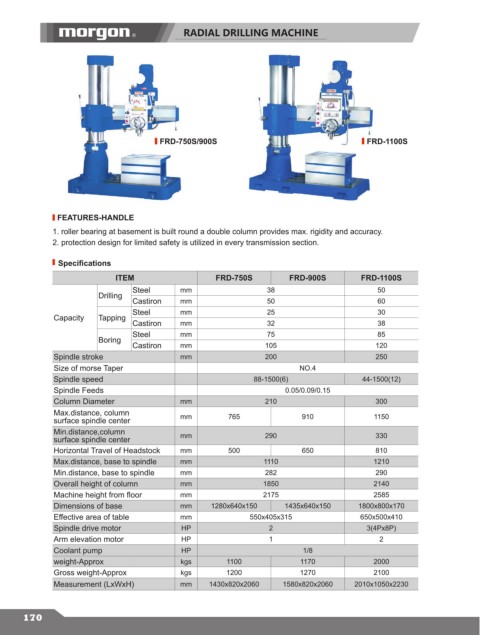

RADIAL DRILLING MACHINE

FRD-750S/900S FRD-1100S

FEATURES-HANDLE
1. roller bearing at basement is built round a double column provides max. rigidity and accuracy.
2. protection design for limited safety is utilized in every transmission section.

Specifications
ITEM FRD-750S FRD-900S FRD-1100S
Steel mm 38 50
Drilling
Castiron mm 50 60
Steel mm 25 30
Capacity Tapping
Castiron mm 32 38
Steel mm 75 85
Boring
Castiron mm 105 120
Spindle stroke mm 200 250
Size of morse Taper NO.4
Spindle speed 88-1500(6) 44-1500(12)
Spindle Feeds 0.05/0.09/0.15
Column Diameter mm 210 300
Max.distance, column mm 765 910 1150
surface spindle center
Min.distance,column mm 290 330
surface spindle center
Horizontal Travel of Headstock mm 500 650 810
Max.distance, base to spindle mm 1110 1210
Min.distance, base to spindle mm 282 290
Overall height of column mm 1850 2140
Machine height from floor mm 2175 2585
Dimensions of base mm 1280x640x150 1435x640x150 1800x800x170
Effective area of table mm 550x405x315 650x500x410
Spindle drive motor HP 2 3(4Px8P)
Arm elevation motor HP 1 2
Coolant pump HP 1/8
weight-Approx kgs 1100 1170 2000
Gross weight-Approx kgs 1200 1270 2100
Measurement (LxWxH) mm 1430x820x2060 1580x820x2060 2010x1050x2230
