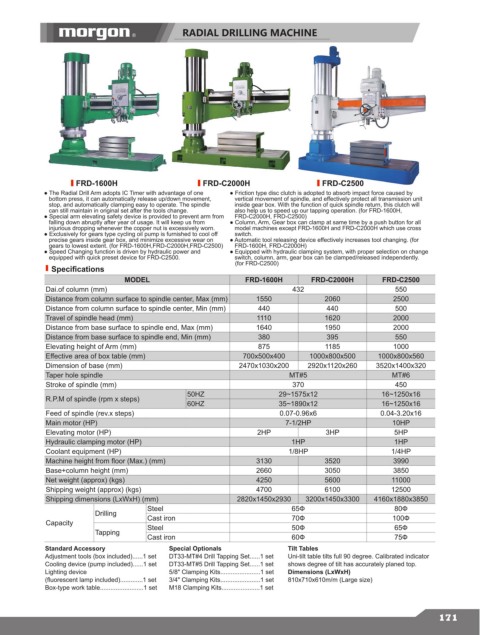

RADIAL DRILLING MACHINE

FRD-1600H FRD-C2000H FRD-C2500
● The Radial Drill Arm adopts IC Timer with advantage of one ● Friction type disc clutch is adopted to absorb impact force caused by
bottom press, it can automatically release up/down movement, vertical movement of spindle, and effectively protect all transmission unit
stop, and automatically clamping easy to operate. The spindle inside gear box. With the function of quick spindle return, this clutch will
can still maintain in original set after the tools change. also help us to speed up our tapping operation. (for FRD-1600H,
● Special arm elevating safety device is provided to prevent arm from FRD-C2000H, FRD-C2500)
falling down abruptly after year of usage. It will keep us from ● Column, Arm, Gear box can clamp at same time by a push button for all
injurious dropping whenever the copper nut is excessively worn. model machines except FRD-1600H and FRD-C2000H which use cross
● Exclusively for gears type cycling oil pump is furnished to cool off switch.
precise gears inside gear box, and minimize excessive wear on ● Automatic tool releasing device effectively increases tool changing. (for
gears to lowest extent. (for FRD-1600H,FRD-C2000H,FRD-C2500) FRD-1600H, FRD-C2000H)
● Speed Changing function is driven by hydraulic power and ● Equipped with hydraulic clamping system, with proper selection on change
equipped with quick preset device for FRD-C2500. switch, column, arm, gear box can be clamped/released independently.
Specifications (for FRD-C2500)
MODEL FRD-1600H FRD-C2000H FRD-C2500
Dai.of column (mm) 432 550
Distance from column surface to spindle center, Max (mm) 1550 2060 2500
Distance from column surface to spindle center, Min (mm) 440 440 500
Travel of spindle head (mm) 1110 1620 2000
Distance from base surface to spindle end, Max (mm) 1640 1950 2000
Distance from base surface to spindle end, Min (mm) 380 395 550
Elevating height of Arm (mm) 875 1185 1000
Effective area of box table (mm) 700x500x400 1000x800x500 1000x800x560
Dimension of base (mm) 2470x1030x200 2920x1120x260 3520x1400x320
Taper hole spindle MT#5 MT#6
Stroke of spindle (mm) 370 450
50HZ 29~1575x12 16~1250x16
R.P.M of spindle (rpm x steps)
60HZ 35~1890x12 16~1250x16
Feed of spindle (rev.x steps) 0.07-0.96x6 0.04-3.20x16
Main motor (HP) 7-1/2HP 10HP
Elevating motor (HP) 2HP 3HP 5HP
Hydraulic clamping motor (HP) 1HP 1HP
Coolant equipment (HP) 1/8HP 1/4HP
Machine height from floor (Max.) (mm) 3130 3520 3990
Base+column height (mm) 2660 3050 3850
Net weight (approx) (kgs) 4250 5600 11000
Shipping weight (approx) (kgs) 4700 6100 12500
Shipping dimensions (LxWxH) (mm) 2820x1450x2930 3200x1450x3300 4160x1880x3850
Steel 65Ф 80Ф
Drilling
Capacity Cast iron 70Ф 100Ф
Steel
65Ф
50Ф
Tapping
Cast iron 60Ф 75Ф
Special Optionals Tilt Tables
Standard Accessory
Adjustment tools (box included)......1 set DT33-MT#4 Drill Tapping Set......1 set Uni-tilt table tilts full 90 degree. Calibrated indicator
Cooling device (pump included)......1 set DT33-MT#5 Drill Tapping Set......1 set shows degree of tilt has accurately planed top.
Lighting device 5/8" Clamping Kits.......................1 set Dimensions (LxWxH)
(fluorescent lamp included).............1 set 3/4" Clamping Kits.......................1 set 810x710x610m/m (Large size)
Box-type work table.........................1 set M18 Clamping Kits......................1 set
