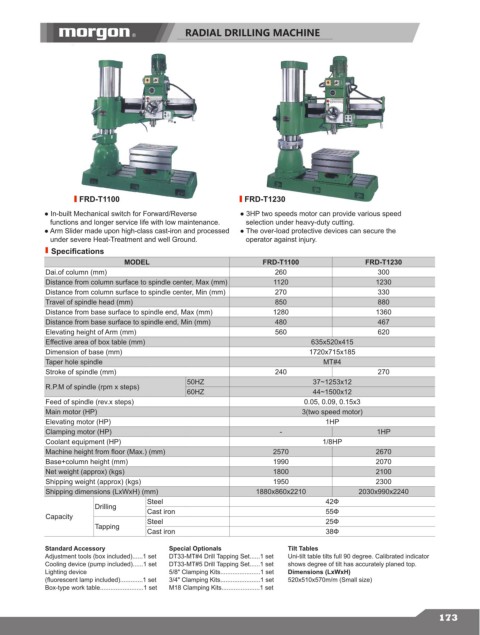

RADIAL DRILLING MACHINE

FRD-T1100 FRD-T1230
● In-built Mechanical switch for Forward/Reverse ● 3HP two speeds motor can provide various speed
functions and longer service life with low maintenance. selection under heavy-duty cutting.
● Arm Slider made upon high-class cast-iron and processed ● The over-load protective devices can secure the
under severe Heat-Treatment and well Ground. operator against injury.
Specifications
MODEL FRD-T1100 FRD-T1230
Dai.of column (mm) 260 300
Distance from column surface to spindle center, Max (mm) 1120 1230
Distance from column surface to spindle center, Min (mm) 270 330
Travel of spindle head (mm) 850 880
Distance from base surface to spindle end, Max (mm) 1280 1360
Distance from base surface to spindle end, Min (mm) 480 467
Elevating height of Arm (mm) 560 620
Effective area of box table (mm) 635x520x415
Dimension of base (mm) 1720x715x185
Taper hole spindle MT#4
Stroke of spindle (mm) 240 270
50HZ 37~1253x12
R.P.M of spindle (rpm x steps)
60HZ 44~1500x12
Feed of spindle (rev.x steps) 0.05, 0.09, 0.15x3
Main motor (HP) 3(two speed motor)
Elevating motor (HP) 1HP
Clamping motor (HP) - 1HP
Coolant equipment (HP) 1/8HP
Machine height from floor (Max.) (mm) 2570 2670
Base+column height (mm) 1990 2070
Net weight (approx) (kgs) 1800 2100
Shipping weight (approx) (kgs) 1950 2300
Shipping dimensions (LxWxH) (mm) 1880x860x2210 2030x990x2240
Steel 42Ф
Drilling Cast iron 55Ф
Capacity Steel 25Ф
Tapping
Cast iron 38Ф

Standard Accessory Special Optionals Tilt Tables
Adjustment tools (box included)......1 set DT33-MT#4 Drill Tapping Set......1 set Uni-tilt table tilts full 90 degree. Calibrated indicator
Cooling device (pump included)......1 set DT33-MT#5 Drill Tapping Set......1 set shows degree of tilt has accurately planed top.
Lighting device 5/8" Clamping Kits.......................1 set Dimensions (LxWxH)
(fluorescent lamp included).............1 set 3/4" Clamping Kits.......................1 set 520x510x570m/m (Small size)
Box-type work table.........................1 set M18 Clamping Kits......................1 set
