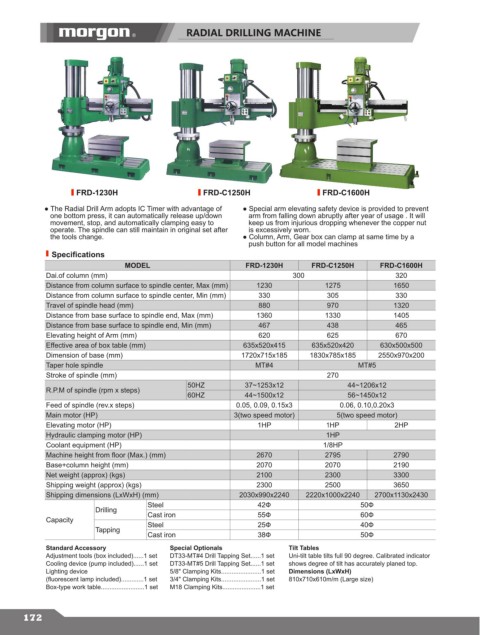

RADIAL DRILLING MACHINE

FRD-1230H FRD-C1250H FRD-C1600H
● The Radial Drill Arm adopts IC Timer with advantage of ● Special arm elevating safety device is provided to prevent
one bottom press, it can automatically release up/down arm from falling down abruptly after year of usage . It will
movement, stop, and automatically clamping easy to keep us from injurious dropping whenever the copper nut
operate. The spindle can still maintain in original set after is excessively worn.
the tools change. ● Column, Arm, Gear box can clamp at same time by a
push button for all model machines
Specifications
MODEL FRD-1230H FRD-C1250H FRD-C1600H
Dai.of column (mm) 300 320
Distance from column surface to spindle center, Max (mm) 1230 1275 1650
Distance from column surface to spindle center, Min (mm) 330 305 330
Travel of spindle head (mm) 880 970 1320
Distance from base surface to spindle end, Max (mm) 1360 1330 1405
Distance from base surface to spindle end, Min (mm) 467 438 465
Elevating height of Arm (mm) 620 625 670
Effective area of box table (mm) 635x520x415 635x520x420 630x500x500
Dimension of base (mm) 1720x715x185 1830x785x185 2550x970x200
Taper hole spindle MT#4 MT#5
Stroke of spindle (mm) 270
50HZ 37~1253x12 44~1206x12
R.P.M of spindle (rpm x steps)
60HZ 44~1500x12 56~1450x12
Feed of spindle (rev.x steps) 0.05, 0.09, 0.15x3 0.06, 0.10,0.20x3
Main motor (HP) 3(two speed motor) 5(two speed motor)
Elevating motor (HP) 1HP 1HP 2HP
Hydraulic clamping motor (HP) 1HP
Coolant equipment (HP) 1/8HP
Machine height from floor (Max.) (mm) 2670 2795 2790
Base+column height (mm) 2070 2070 2190
Net weight (approx) (kgs) 2100 2300 3300
Shipping weight (approx) (kgs) 2300 2500 3650
Shipping dimensions (LxWxH) (mm) 2030x990x2240 2220x1000x2240 2700x1130x2430
Steel 42Ф 50Ф
Drilling
Capacity Cast iron 55Ф 60Ф
40Ф
25Ф
Steel
Tapping
Cast iron 38Ф 50Ф
Standard Accessory Special Optionals Tilt Tables
Adjustment tools (box included)......1 set DT33-MT#4 Drill Tapping Set......1 set Uni-tilt table tilts full 90 degree. Calibrated indicator
Cooling device (pump included)......1 set DT33-MT#5 Drill Tapping Set......1 set shows degree of tilt has accurately planed top.
Lighting device 5/8" Clamping Kits.......................1 set Dimensions (LxWxH)
(fluorescent lamp included).............1 set 3/4" Clamping Kits.......................1 set 810x710x610m/m (Large size)
Box-type work table.........................1 set M18 Clamping Kits......................1 set
