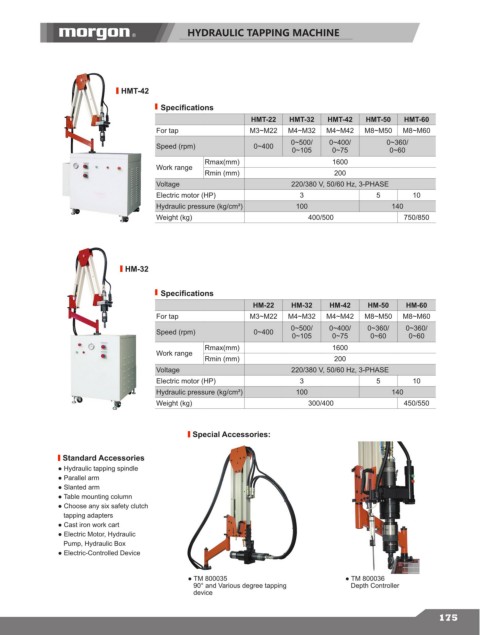

HYDRAULIC TAPPING MACHINE

HMT-42
Specifications
HMT-22 HMT-32 HMT-42 HMT-50 HMT-60
For tap M3~M22 M4~M32 M4~M42 M8~M50 M8~M60
0~500/ 0~400/ 0~360/
Speed (rpm) 0~400
0~105 0~75 0~60
Rmax(mm) 1600
Work range
Rmin (mm) 200
Voltage 220/380 V, 50/60 Hz, 3-PHASE
Electric motor (HP) 3 5 10
Hydraulic pressure (kg/cm²) 100 140
Weight (kg) 400/500 750/850

HM-32

Specifications
HM-22 HM-32 HM-42 HM-50 HM-60
For tap M3~M22 M4~M32 M4~M42 M8~M50 M8~M60
0~500/ 0~400/ 0~360/ 0~360/
Speed (rpm) 0~400
0~105 0~75 0~60 0~60
Rmax(mm) 1600
Work range
Rmin (mm) 200
Voltage 220/380 V, 50/60 Hz, 3-PHASE
Electric motor (HP) 3 5 10
Hydraulic pressure (kg/cm²) 100 140
Weight (kg) 300/400 450/550

Special Accessories:

Standard Accessories
● Hydraulic tapping spindle
● Parallel arm
● Slanted arm
● Table mounting column
● Choose any six safety clutch
tapping adapters
● Cast iron work cart
● Electric Motor, Hydraulic
Pump, Hydraulic Box
● Electric-Controlled Device

● TM 800035 ● TM 800036
90° and Various degree tapping Depth Controller
device
