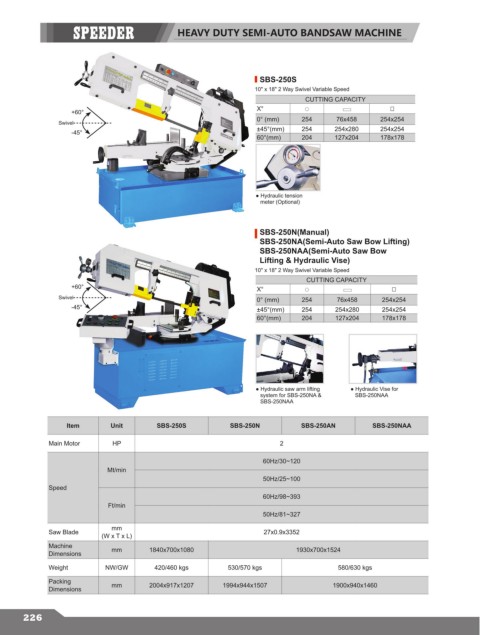

HEAVY DUTY SEMI-AUTO BANDSAW MACHINE
SBS-250S
10" x 18" 2 Way Swivel Variable Speed
CUTTING CAPACITY
X°
+60°
0° (mm) 254 76x458 254x254
Swivel
-45° ±45°(mm) 254 254x280 254x254
60°(mm) 204 127x204 178x178
● Hydraulic tension
meter (Optional)
SBS-250N(Manual)
SBS-250NA(Semi-Auto Saw Bow Lifting)
SBS-250NAA(Semi-Auto Saw Bow
Lifting & Hydraulic Vise)
10" x 18" 2 Way Swivel Variable Speed
CUTTING CAPACITY
+60° X°
Swivel 0° (mm) 254 76x458 254x254
-45° ±45°(mm) 254 254x280 254x254
60°(mm) 204 127x204 178x178
● Hydraulic saw arm lifting ● Hydraulic Vise for
system for SBS-250NA & SBS-250NAA
SBS-250NAA
ltem Unit SBS-250S SBS-250N SBS-250AN SBS-250NAA
Main Motor HP 2
60Hz/30~120
Mt/min
50Hz/25~100
Speed
60Hz/98~393
Ft/min
50Hz/81~327
mm
Saw Blade 27x0.9x3352
(W x T x L)
Machine mm 1840x700x1080 1930x700x1524
Dimensions
Weight NW/GW 420/460 kgs 530/570 kgs 580/630 kgs
Packing mm 2004x917x1207 1994x944x1507 1900x940x1460
Dimensions
