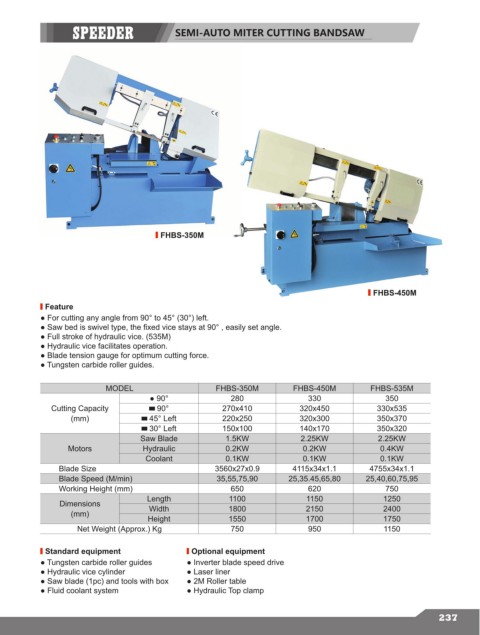

SEMI-AUTO MITER CUTTING BANDSAW

FHBS-350M

FHBS-450M
Feature
● For cutting any angle from 90° to 45° (30°) left.
● Saw bed is swivel type, the fixed vice stays at 90° , easily set angle.
● Full stroke of hydraulic vice. (535M)
● Hydraulic vice facilitates operation.
● Blade tension gauge for optimum cutting force.
● Tungsten carbide roller guides.

MODEL FHBS-350M FHBS-450M FHBS-535M
● 90° 280 330 350
Cutting Capacity ▄ 90° 270x410 320x450 330x535
(mm) ▄ 45° Left 220x250 320x300 350x370
▄ 30° Left 150x100 140x170 350x320
Saw Blade 1.5KW 2.25KW 2.25KW
Motors Hydraulic 0.2KW 0.2KW 0.4KW
Coolant 0.1KW 0.1KW 0.1KW
Blade Size 3560x27x0.9 4115x34x1.1 4755x34x1.1
Blade Speed (M/min) 35,55,75,90 25,35.45,65,80 25,40,60,75,95
Working Height (mm) 650 620 750
Length 1100 1150 1250
Dimensions Width 1800 2150 2400
(mm)
Height 1550 1700 1750
Net Weight (Approx.) Kg 750 950 1150

Standard equipment Optional equipment
● Tungsten carbide roller guides ● Inverter blade speed drive
● Hydraulic vice cylinder ● Laser liner
● Saw blade (1pc) and tools with box ● 2M Roller table
● Fluid coolant system ● Hydraulic Top clamp
