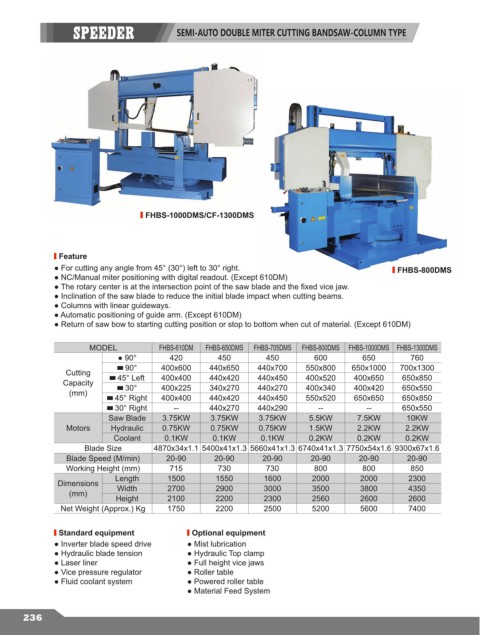

SEMI-AUTO DOUBLE MITER CUTTING BANDSAW-COLUMN TYPE

FHBS-1000DMS/CF-1300DMS

Feature
● For cutting any angle from 45° (30°) left to 30° right. FHBS-800DMS
● NC/Manual miter positioning with digital readout. (Except 610DM)
● The rotary center is at the intersection point of the saw blade and the fixed vice jaw.
● Inclination of the saw blade to reduce the initial blade impact when cutting beams.
● Columns with linear guideways.
● Automatic positioning of guide arm. (Except 610DM)
● Return of saw bow to starting cutting position or stop to bottom when cut of material. (Except 610DM)

MODEL FHBS-610DM FHBS-650DMS FHBS-705DMS FHBS-800DMS FHBS-1000DMS FHBS-1300DMS
● 90° 420 450 450 600 650 760
▄ 90° 400x600 440x650 440x700 550x800 650x1000 700x1300
Cutting ▄
Capacity 45° Left 400x400 440x420 440x450 400x520 400x650 650x850
▄
30°
(mm) ▄ 45° Right 400x225 340x270 440x270 400x340 400x420 650x550
440x450
650x650
550x520
440x420
400x400
650x850
▄ 30° Right -- 440x270 440x290 -- -- 650x550
Saw Blade 3.75KW 3.75KW 3.75KW 5.5KW 7.5KW 10KW
Motors Hydraulic 0.75KW 0.75KW 0.75KW 1.5KW 2.2KW 2.2KW
Coolant 0.1KW 0.1KW 0.1KW 0.2KW 0.2KW 0.2KW
Blade Size 4870x34x1.1 5400x41x1.3 5660x41x1.3 6740x41x1.3 7750x54x1.6 9300x67x1.6
Blade Speed (M/min) 20-90 20-90 20-90 20-90 20-90 20-90
Working Height (mm) 715 730 730 800 800 850
Length 1500 1550 1600 2000 2000 2300
Dimensions Width 2700 2900 3000 3500 3800 4350
(mm)
Height 2100 2200 2300 2560 2600 2600
Net Weight (Approx.) Kg 1750 2200 2500 5200 5600 7400

Standard equipment Optional equipment
● Inverter blade speed drive ● Mist lubrication
● Hydraulic blade tension ● Hydraulic Top clamp
● Laser liner ● Full height vice jaws
● Vice pressure regulator ● Roller table
● Fluid coolant system ● Powered roller table
● Material Feed System
