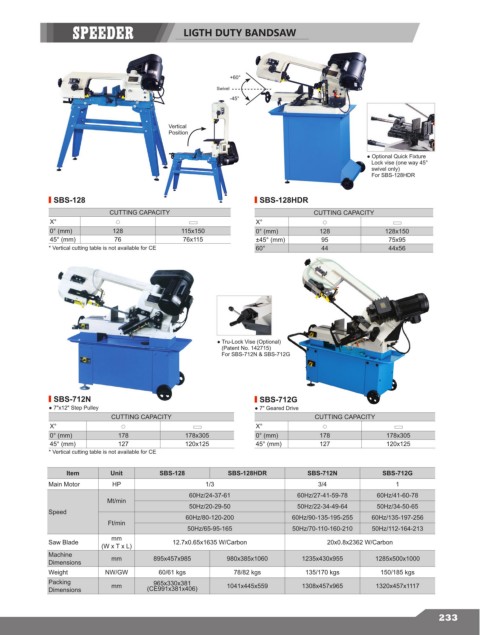

LIGTH DUTY BANDSAW

+60°
Swivel
-45°

Vertical
Position

● Optional Quick Fixture
Lock vise (one way 45°
swivel only)
For SBS-128HDR

SBS-128 SBS-128HDR
CUTTING CAPACITY CUTTING CAPACITY
X° X°
0° (mm) 128 115x150 0° (mm) 128 128x150
45° (mm) 76 76x115 ±45° (mm) 95 75x95
* Vertical cutting table is not available for CE 60° 44 44x56

● Tru-Lock Vise (Optional)
(Patent No. 142715)
For SBS-712N & SBS-712G

SBS-712N SBS-712G
● 7"x12" Step Pulley ● 7" Geared Drive
CUTTING CAPACITY CUTTING CAPACITY
X° X°
0° (mm) 178 178x305 0° (mm) 178 178x305
45° (mm) 127 120x125 45° (mm) 127 120x125
* Vertical cutting table is not available for CE

ltem Unit SBS-128 SBS-128HDR SBS-712N SBS-712G
Main Motor HP 1/3 3/4 1
60Hz/24-37-61 60Hz/27-41-59-78 60Hz/41-60-78
Mt/min
50Hz/20-29-50 50Hz/22-34-49-64 50Hz/34-50-65
Speed 60Hz/80-120-200 60Hz/90-135-195-255 60Hz/135-197-256
Ft/min
50Hz/65-95-165 50Hz/70-110-160-210 50Hz/112-164-213
mm
Saw Blade 12.7x0.65x1635 W/Carbon 20x0.8x2362 W/Carbon
(W x T x L)
Machine mm 895x457x985 980x385x1060 1235x430x955 1285x500x1000
Dimensions
Weight NW/GW 60/61 kgs 78/82 kgs 135/170 kgs 150/185 kgs
Packing mm 965x330x381 1041x445x559 1308x457x965 1320x457x1117
Dimensions (CE991x381x406)

233
