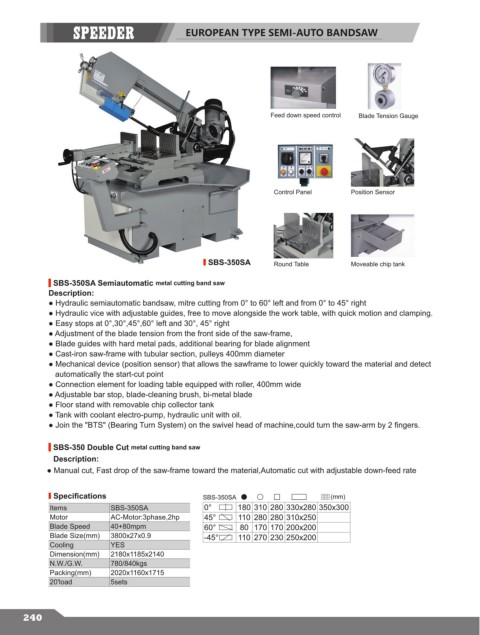

EUROPEAN TYPE SEMI-AUTO BANDSAW

Feed down speed control Blade Tension Gauge

Control Panel Position Sensor

SBS-350SA Round Table Moveable chip tank

SBS-350SA Semiautomatic metal cutting band saw
Description:
● Hydraulic semiautomatic bandsaw, mitre cutting from 0° to 60° left and from 0° to 45° right
● Hydraulic vice with adjustable guides, free to move alongside the work table, with quick motion and clamping.
● Easy stops at 0°,30°,45°,60° left and 30°, 45° right
● Adjustment of the blade tension from the front side of the saw-frame,
● Blade guides with hard metal pads, additional bearing for blade alignment
● Cast-iron saw-frame with tubular section, pulleys 400mm diameter
● Mechanical device (position sensor) that allows the sawframe to lower quickly toward the material and detect
automatically the start-cut point
● Connection element for loading table equipped with roller, 400mm wide
● Adjustable bar stop, blade-cleaning brush, bi-metal blade
● Floor stand with removable chip collector tank
● Tank with coolant electro-pump, hydraulic unit with oil.
● Join the "BTS" (Bearing Turn System) on the swivel head of machine,could turn the saw-arm by 2 fingers.

SBS-350 Double Cut metal cutting band saw
Description:
● Manual cut, Fast drop of the saw-frame toward the material,Automatic cut with adjustable down-feed rate

Specifications SBS-350SA (mm)
Items SBS-350SA 0° 180 310 280 330x280 350x300
Motor AC-Motor:3phase,2hp 45° 110 280 280 310x250
Blade Speed 40+80mpm 60° 80 170 170 200x200
Blade Size(mm) 3800x27x0.9 -45° 110 270 230 250x200
Cooling YES
Dimension(mm) 2180x1185x2140
N.W./G.W. 780/840kgs
Packing(mm) 2020x1160x1715
20'load 5sets
