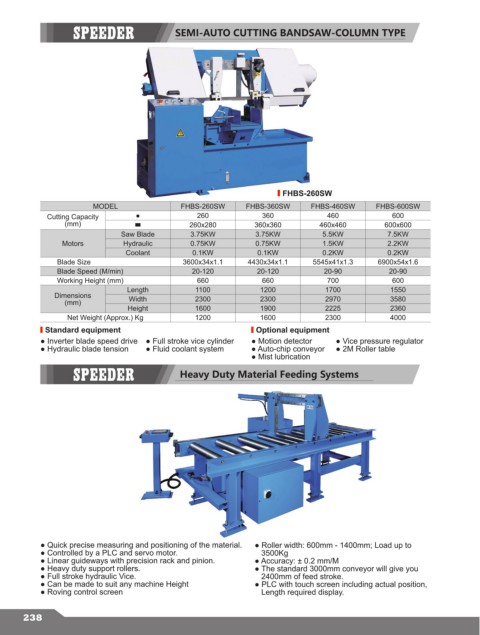

SEMI-AUTO CUTTING BANDSAW-COLUMN TYPE

FHBS-260SW
MODEL FHBS-260SW FHBS-360SW FHBS-460SW FHBS-600SW
Cutting Capacity ● 260 360 460 600
(mm) ▄ 260x280 360x360 460x460 600x600
Saw Blade 3.75KW 3.75KW 5.5KW 7.5KW
Motors Hydraulic 0.75KW 0.75KW 1.5KW 2.2KW
Coolant 0.1KW 0.1KW 0.2KW 0.2KW
Blade Size 3600x34x1.1 4430x34x1.1 5545x41x1.3 6900x54x1.6
Blade Speed (M/min) 20-120 20-120 20-90 20-90
Working Height (mm) 660 660 700 600
Length 1100 1200 1700 1550
Dimensions
(mm) Width 2300 2300 2970 3580
Height 1600 1900 2225 2360
Net Weight (Approx.) Kg 1200 1600 2300 4000
Standard equipment Optional equipment
● Inverter blade speed drive ● Full stroke vice cylinder ● Motion detector ● Vice pressure regulator
● Hydraulic blade tension ● Fluid coolant system ● Auto-chip conveyor ● 2M Roller table
● Mist lubrication

Heavy Duty Material Feeding Systems

● Quick precise measuring and positioning of the material. ● Roller width: 600mm - 1400mm; Load up to
● Controlled by a PLC and servo motor. 3500Kg
● Linear guideways with precision rack and pinion. ● Accuracy: ± 0.2 mm/M
● Heavy duty support rollers. ● The standard 3000mm conveyor will give you
● Full stroke hydraulic Vice. 2400mm of feed stroke.
● Can be made to suit any machine Height ● PLC with touch screen including actual position,
● Roving control screen Length required display.
