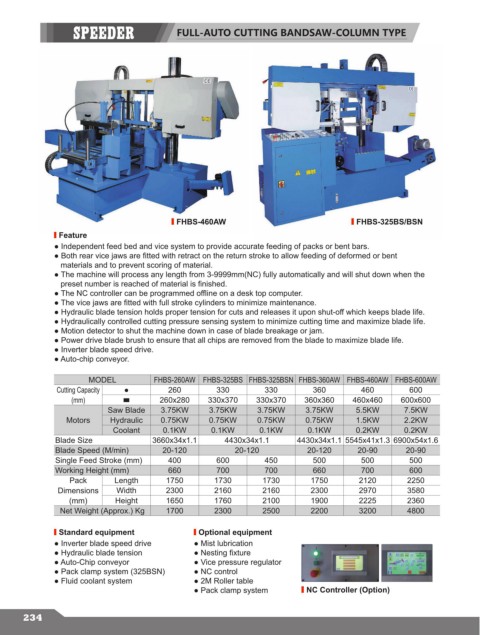

FULL-AUTO CUTTING BANDSAW-COLUMN TYPE

FHBS-460AW FHBS-325BS/BSN

Feature
● Independent feed bed and vice system to provide accurate feeding of packs or bent bars.
● Both rear vice jaws are fitted with retract on the return stroke to allow feeding of deformed or bent
materials and to prevent scoring of material.
● The machine will process any length from 3-9999mm(NC) fully automatically and will shut down when the
preset number is reached of material is finished.
● The NC controller can be programmed offline on a desk top computer.
● The vice jaws are fitted with full stroke cylinders to minimize maintenance.
● Hydraulic blade tension holds proper tension for cuts and releases it upon shut-off which keeps blade life.
● Hydraulically controlled cutting pressure sensing system to minimize cutting time and maximize blade life.
● Motion detector to shut the machine down in case of blade breakage or jam.
● Power drive blade brush to ensure that all chips are removed from the blade to maximize blade life.
● Inverter blade speed drive.
● Auto-chip conveyor.

MODEL FHBS-260AW FHBS-325BS FHBS-325BSN FHBS-360AW FHBS-460AW FHBS-600AW
Cutting Capacity ● 260 330 330 360 460 600
(mm) ▄ 260x280 330x370 330x370 360x360 460x460 600x600
Saw Blade 3.75KW 3.75KW 3.75KW 3.75KW 5.5KW 7.5KW
Motors Hydraulic 0.75KW 0.75KW 0.75KW 0.75KW 1.5KW 2.2KW
Coolant 0.1KW 0.1KW 0.1KW 0.1KW 0.2KW 0.2KW
Blade Size 3660x34x1.1 4430x34x1.1 4430x34x1.1 5545x41x1.3 6900x54x1.6
Blade Speed (M/min) 20-120 20-120 20-120 20-90 20-90
Single Feed Stroke (mm) 400 600 450 500 500 500
Working Height (mm) 660 700 700 660 700 600
Pack Length 1750 1730 1730 1750 2120 2250
Dimensions Width 2300 2160 2160 2300 2970 3580
(mm) Height 1650 1760 2100 1900 2225 2360
Net Weight (Approx.) Kg 1700 2300 2500 2200 3200 4800

Standard equipment Optional equipment
● Inverter blade speed drive ● Mist lubrication
● Hydraulic blade tension ● Nesting fixture
● Auto-Chip conveyor ● Vice pressure regulator
● Pack clamp system (325BSN) ● NC control
● Fluid coolant system ● 2M Roller table
● Pack clamp system NC Controller (Option)
