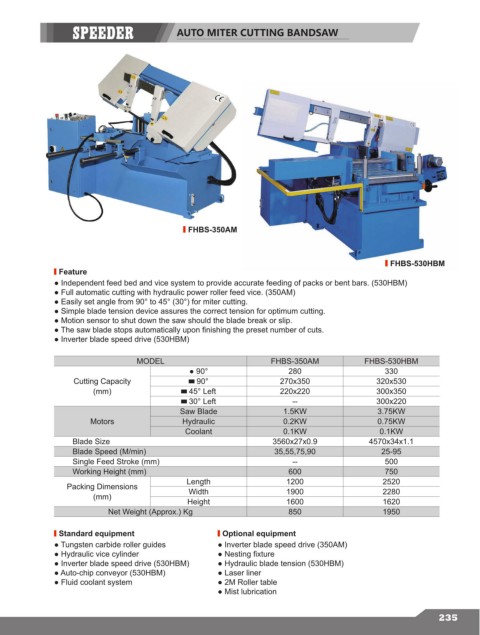

AUTO MITER CUTTING BANDSAW

FHBS-350AM

FHBS-530HBM
Feature
● Independent feed bed and vice system to provide accurate feeding of packs or bent bars. (530HBM)
● Full automatic cutting with hydraulic power roller feed vice. (350AM)
● Easily set angle from 90° to 45° (30°) for miter cutting.
● Simple blade tension device assures the correct tension for optimum cutting.
● Motion sensor to shut down the saw should the blade break or slip.
● The saw blade stops automatically upon finishing the preset number of cuts.
● Inverter blade speed drive (530HBM)

MODEL FHBS-350AM FHBS-530HBM
● 90° 280 330
Cutting Capacity ▄ 90° 270x350 320x530
(mm) ▄ 45° Left 220x220 300x350
▄ 30° Left -- 300x220
Saw Blade 1.5KW 3.75KW
Motors Hydraulic 0.2KW 0.75KW
Coolant 0.1KW 0.1KW
Blade Size 3560x27x0.9 4570x34x1.1
Blade Speed (M/min) 35,55,75,90 25-95
Single Feed Stroke (mm) -- 500
Working Height (mm) 600 750
Length 1200 2520
Packing Dimensions Width 1900 2280
(mm)
Height 1600 1620
Net Weight (Approx.) Kg 850 1950

Standard equipment Optional equipment
● Tungsten carbide roller guides ● Inverter blade speed drive (350AM)
● Hydraulic vice cylinder ● Nesting fixture
● Inverter blade speed drive (530HBM) ● Hydraulic blade tension (530HBM)
● Auto-chip conveyor (530HBM) ● Laser liner
● Fluid coolant system ● 2M Roller table
● Mist lubrication
