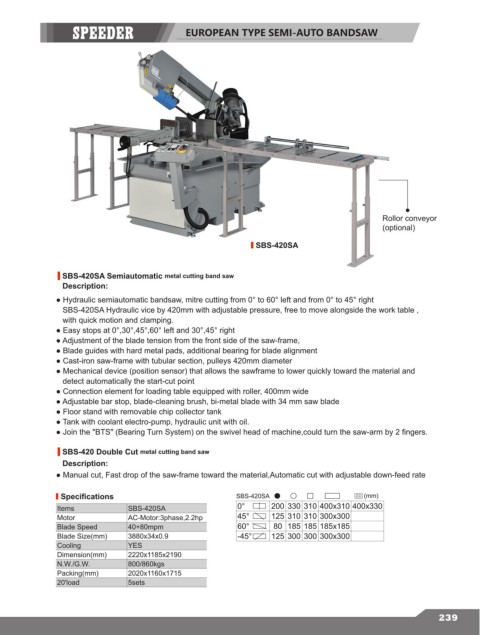

EUROPEAN TYPE SEMI-AUTO BANDSAW

Rollor conveyor
(optional)

SBS-420SA

SBS-420SA Semiautomatic metal cutting band saw
Description:
● Hydraulic semiautomatic bandsaw, mitre cutting from 0° to 60° left and from 0° to 45° right
SBS-420SA Hydraulic vice by 420mm with adjustable pressure, free to move alongside the work table ,
with quick motion and clamping.
● Easy stops at 0°,30°,45°,60° left and 30°,45° right
● Adjustment of the blade tension from the front side of the saw-frame,
● Blade guides with hard metal pads, additional bearing for blade alignment
● Cast-iron saw-frame with tubular section, pulleys 420mm diameter
● Mechanical device (position sensor) that allows the sawframe to lower quickly toward the material and
detect automatically the start-cut point
● Connection element for loading table equipped with roller, 400mm wide
● Adjustable bar stop, blade-cleaning brush, bi-metal blade with 34 mm saw blade
● Floor stand with removable chip collector tank
● Tank with coolant electro-pump, hydraulic unit with oil.
● Join the "BTS" (Bearing Turn System) on the swivel head of machine,could turn the saw-arm by 2 fingers.

SBS-420 Double Cut metal cutting band saw
Description:
● Manual cut, Fast drop of the saw-frame toward the material,Automatic cut with adjustable down-feed rate

Specifications SBS-420SA (mm)
Items SBS-420SA 0° 200 330 310 400x310 400x330
Motor AC-Motor:3phase,2.2hp 45° 125 310 310 300x300
Blade Speed 40+80mpm 60° 80 185 185 185x185
Blade Size(mm) 3880x34x0.9 -45° 125 300 300 300x300
Cooling YES
Dimension(mm) 2220x1185x2190
N.W./G.W. 800/860kgs
Packing(mm) 2020x1160x1715
20'load 5sets
