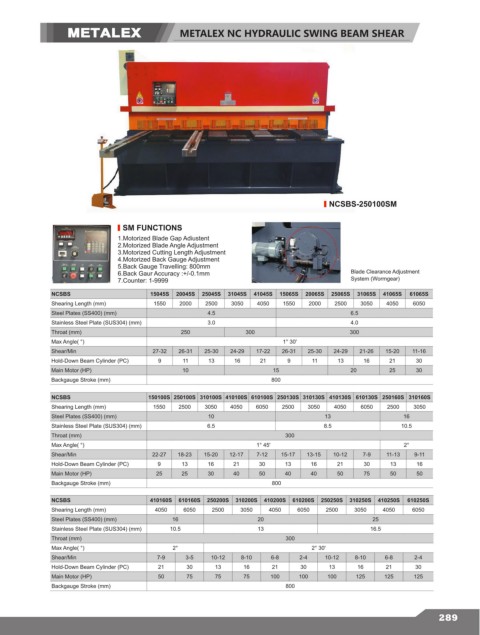

METALEX NC HYDRAULIC SWING BEAM SHEAR

NCSBS-250100SM

SM FUNCTIONS
1.Motorized Blade Gap Adiustent
2.Motorized Blade Angle Adjustment
3.Motorized Cutting Length Adjustment
4.Motorized Back Gauge Adjustment
5.Back Gauge Travelling: 800mm
6.Back Gaur Accuracy :+/-0.1mm Blade Clearance Adjustment
7.Counter: 1-9999 System (Wormgear)
NCSBS 15045S 20045S 25045S 31045S 41045S 15065S 20065S 25065S 31065S 41065S 61065S
Shearing Length (mm) 1550 2000 2500 3050 4050 1550 2000 2500 3050 4050 6050
Steel Plates (SS400) (mm) 4.5 6.5
Stainless Steel Plate (SUS304) (mm) 3.0 4.0
Throat (mm) 250 300 300
Max Angle( °) 1° 30'
Shear/Min 27-32 26-31 25-30 24-29 17-22 26-31 25-30 24-29 21-26 15-20 11-16
Hold-Down Beam Cylinder (PC) 9 11 13 16 21 9 11 13 16 21 30
Main Motor (HP) 10 15 20 25 30
Backgauge Stroke (mm) 800

NCSBS 150100S 250100S 310100S 410100S 610100S 250130S 310130S 410130S 610130S 250160S 310160S
Shearing Length (mm) 1550 2500 3050 4050 6050 2500 3050 4050 6050 2500 3050
Steel Plates (SS400) (mm) 10 13 16
Stainless Steel Plate (SUS304) (mm) 6.5 8.5 10.5
Throat (mm) 300
Max Angle( °) 1° 45' 2°
Shear/Min 22-27 18-23 15-20 12-17 7-12 15-17 13-15 10-12 7-9 11-13 9-11
Hold-Down Beam Cylinder (PC) 9 13 16 21 30 13 16 21 30 13 16
Main Motor (HP) 25 25 30 40 50 40 40 50 75 50 50
Backgauge Stroke (mm) 800

NCSBS 410160S 610160S 250200S 310200S 410200S 610200S 250250S 310250S 410250S 610250S
Shearing Length (mm) 4050 6050 2500 3050 4050 6050 2500 3050 4050 6050
Steel Plates (SS400) (mm) 16 20 25
Stainless Steel Plate (SUS304) (mm) 10.5 13 16.5
Throat (mm) 300
Max Angle( °) 2° 2° 30'
Shear/Min 7-9 3-5 10-12 8-10 6-8 2-4 10-12 8-10 6-8 2-4
Hold-Down Beam Cylinder (PC) 21 30 13 16 21 30 13 16 21 30
Main Motor (HP) 50 75 75 75 100 100 100 125 125 125
Backgauge Stroke (mm) 800
