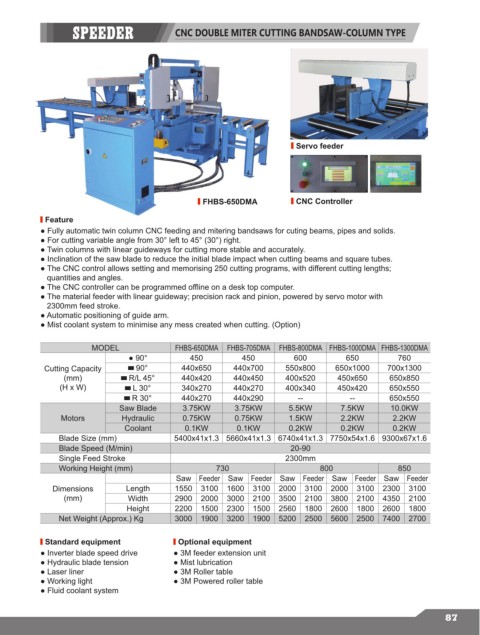

CNC DOUBLE MITER CUTTING BANDSAW-COLUMN TYPE

Servo feeder

FHBS-650DMA CNC Controller

Feature
● Fully automatic twin column CNC feeding and mitering bandsaws for cuting beams, pipes and solids.
● For cutting variable angle from 30° left to 45° (30°) right.
● Twin columns with linear guideways for cutting more stable and accurately.
● Inclination of the saw blade to reduce the initial blade impact when cutting beams and square tubes.
● The CNC control allows setting and memorising 250 cutting programs, with different cutting lengths;
quantities and angles.
● The CNC controller can be programmed offline on a desk top computer.
● The material feeder with linear guideway; precision rack and pinion, powered by servo motor with
2300mm feed stroke.
● Automatic positioning of guide arm.
● Mist coolant system to minimise any mess created when cutting. (Option)

MODEL FHBS-650DMA FHBS-705DMA FHBS-800DMA FHBS-1000DMA FHBS-1300DMA
● 90° 450 450 600 650 760
FHBS-6056NC ▄
Cutting Capacity 90° 440x650 440x700 550x800 650x1000 700x1300
(mm) ▄ R/L 45° 440x420 440x450 400x520 450x650 650x850
(H x W) ▄ L 30° 340x270 440x270 400x340 450x420 650x550
▄ R 30° 440x270 440x290 -- -- 650x550
Saw Blade 3.75KW 3.75KW 5.5KW 7.5KW 10.0KW
Motors Hydraulic 0.75KW 0.75KW 1.5KW 2.2KW 2.2KW
Coolant 0.1KW 0.1KW 0.2KW 0.2KW 0.2KW
Blade Size (mm) 5400x41x1.3 5660x41x1.3 6740x41x1.3 7750x54x1.6 9300x67x1.6
Blade Speed (M/min) 20-90
Single Feed Stroke 2300mm
Working Height (mm) 730 800 850
Saw Feeder Saw Feeder Saw Feeder Saw Feeder Saw Feeder
Dimensions Length 1550 3100 1600 3100 2000 3100 2000 3100 2300 3100
(mm) Width 2900 2000 3000 2100 3500 2100 3800 2100 4350 2100
Height 2200 1500 2300 1500 2560 1800 2600 1800 2600 1800
Net Weight (Approx.) Kg 3000 1900 3200 1900 5200 2500 5600 2500 7400 2700

Standard equipment Optional equipment
● Inverter blade speed drive ● 3M feeder extension unit
● Hydraulic blade tension ● Mist lubrication
● Laser liner ● 3M Roller table
● Working light ● 3M Powered roller table
● Fluid coolant system
