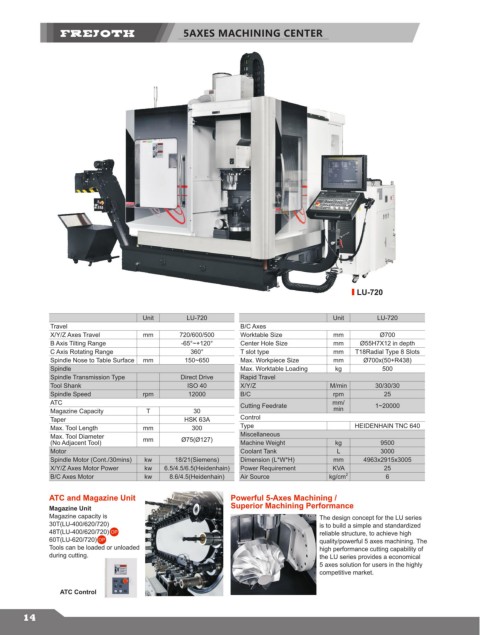

5AXES MACHINING CENTER

LU-720

Unit LU-720 Unit LU-720
Travel B/C Axes
X/Y/Z Axes Travel mm 720/600/500 Worktable Size mm Ø700
B Axis Tilting Range -65°~+120° Center Hole Size mm Ø55H7X12 in depth
C Axis Rotating Range 360° T slot type mm T18Radial Type 8 Slots
Spindle Nose to Table Surface mm 150~650 Max. Workpiece Size mm Ø700x(50+R438)
Spindle Max. Worktable Loading kg 500
Spindle Transmission Type Direct Drive Rapid Travel
Tool Shank ISO 40 X/Y/Z M/min 30/30/30
Spindle Speed rpm 12000 B/C rpm 25
ATC Cutting Feedrate mm/ 1~20000
Magazine Capacity T 30 min
Taper HSK 63A Control
Max. Tool Length mm 300 Type HEIDENHAIN TNC 640
Max. Tool Diameter mm Ø75(Ø127) Miscellaneous
(No Adjacent Tool) Machine Weight kg 9500
Motor Coolant Tank L 3000
Spindle Motor (Cont./30mins) kw 18/21(Siemens) Dimension (L*W*H) mm 4963x2915x3005
X/Y/Z Axes Motor Power kw 6.5/4.5/6.5(Heidenhain) Power Requirement KVA 25
B/C Axes Motor kw 8.6/4.5(Heidenhain) Air Source kg/cm 2 6

ATC and Magazine Unit Powerful 5-Axes Machining /
Magazine Unit Superior Machining Performance
Magazine capacity is The design concept for the LU series
30T(LU-400/620/720) is to build a simple and standardized
48T(LU-400/620/720) OP reliable structure, to achieve high
60T(LU-620/720) OP quality/powerful 5 axes machining. The
Tools can be loaded or unloaded high performance cutting capability of
during cutting. the LU series provides a economical
5 axes solution for users in the highly
competitive market.

ATC Control
