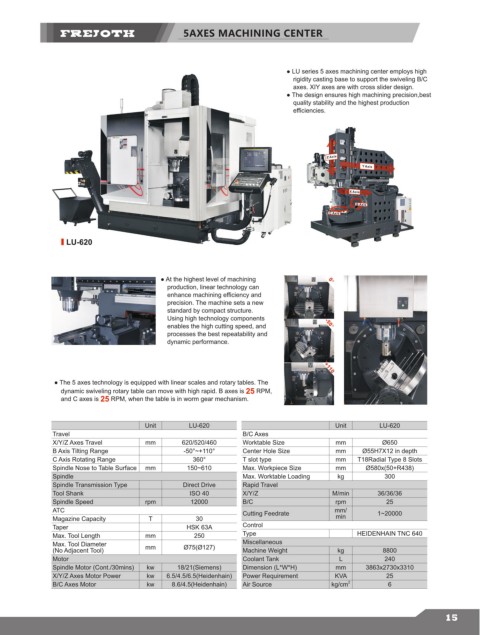

5AXES MACHINING CENTER

● LU series 5 axes machining center employs high
rigidity casting base to support the swiveling B/C
axes. XIY axes are with cross slider design.
● The design ensures high machining precision,best
quality stability and the highest production
efficiencies.

LU-620

● At the highest level of machining
production, linear technology can
enhance machining efficiency and
precision. The machine sets a new
standard by compact structure.
Using high technology components
enables the high cutting speed, and
processes the best repeatability and
dynamic performance.

● The 5 axes technology is equipped with linear scales and rotary tables. The
dynamic swiveling rotary table can move with high rapid. B axes is 25 RPM,
and C axes is 25 RPM, when the table is in worm gear mechanism.

Unit LU-620 Unit LU-620
Travel B/C Axes
X/Y/Z Axes Travel mm 620/520/460 Worktable Size mm Ø650
B Axis Tilting Range -50°~+110° Center Hole Size mm Ø55H7X12 in depth
C Axis Rotating Range 360° T slot type mm T18Radial Type 8 Slots
Spindle Nose to Table Surface mm 150~610 Max. Workpiece Size mm Ø580x(50+R438)
Spindle Max. Worktable Loading kg 300
Spindle Transmission Type Direct Drive Rapid Travel
Tool Shank ISO 40 X/Y/Z M/min 36/36/36
Spindle Speed rpm 12000 B/C rpm 25
ATC Cutting Feedrate mm/ 1~20000
Magazine Capacity T 30 min
Taper HSK 63A Control
Max. Tool Length mm 250 Type HEIDENHAIN TNC 640
Max. Tool Diameter mm Ø75(Ø127) Miscellaneous
(No Adjacent Tool) Machine Weight kg 8800
Motor Coolant Tank L 240
Spindle Motor (Cont./30mins) kw 18/21(Siemens) Dimension (L*W*H) mm 3863x2730x3310
X/Y/Z Axes Motor Power kw 6.5/4.5/6.5(Heidenhain) Power Requirement KVA 25
B/C Axes Motor kw 8.6/4.5(Heidenhain) Air Source kg/cm 2 6
