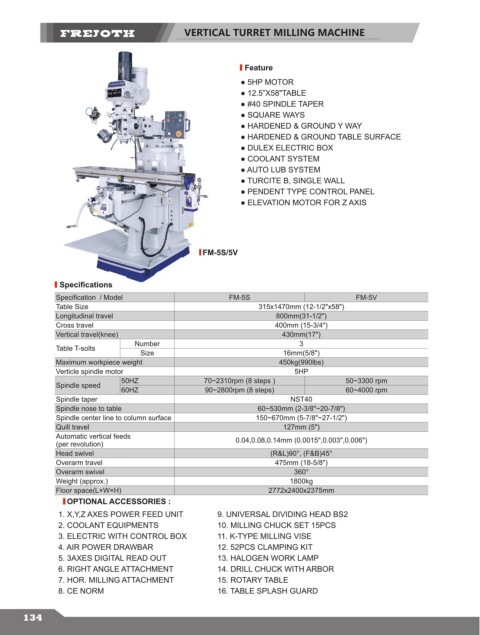

VERTICAL TURRET MILLING MACHINE

Feature
● 5HP MOTOR
● 12.5”X58"TABLE
● #40 SPINDLE TAPER
● SQUARE WAYS
● HARDENED & GROUND Y WAY
● HARDENED & GROUND TABLE SURFACE
● DULEX ELECTRIC BOX
● COOLANT SYSTEM
● AUTO LUB SYSTEM
● TURCITE B, SINGLE WALL
● PENDENT TYPE CONTROL PANEL
● ELEVATION MOTOR FOR Z AXIS

FM-5S/5V

Specifications

Specification / Model FM-5S FM-5V
Table Size 315x1470mm (12-1/2"x58")
Longitudinal travel 800mm(31-1/2")
Cross travel 400mm (15-3/4")
Vertical travel(knee) 430mm(17")
Number 3
Table T-solts
Size 16mm(5/8")
Maximum workpiece weight 450kg(990lbs)
Verticle spindle motor 5HP
50HZ 70~2310rpm (8 steps ) 50~3300 rpm
Spindle speed
60HZ 90~2800rpm (8 steps) 60~4000 rpm
Spindle taper NST40
Spindle nose to table 60~530mm (2-3/8"~20-7/8")
Spindle center line to column surface 150~670mm (5-7/8"~27-1/2")
Quill travel 127mm (5")
Automatic vertical feeds 0.04,0.08,0.14mm (0.0015",0.003",0.006")
(per revolution)
Head swivel (R&L)90°, (F&B)45°
Overarm travel 475mm (18-5/8")
Overarm swivel 360°
Weight (approx.) 1800kg
Floor space(L×W×H) 2772x2400x2375mm
OPTIONAL ACCESSORIES :
1. X,Y,Z AXES POWER FEED UNIT 9. UNIVERSAL DIVIDING HEAD BS2
2. COOLANT EQUIPMENTS 10. MILLING CHUCK SET 15PCS
3. ELECTRIC WITH CONTROL BOX 11. K-TYPE MILLING VISE
4. AIR POWER DRAWBAR 12. 52PCS CLAMPING KIT
5. 3AXES DIGITAL READ OUT 13. HALOGEN WORK LAMP
6. RIGHT ANGLE ATTACHMENT 14. DRILL CHUCK WITH ARBOR
7. HOR. MILLING ATTACHMENT 15. ROTARY TABLE
8. CE NORM 16. TABLE SPLASH GUARD
