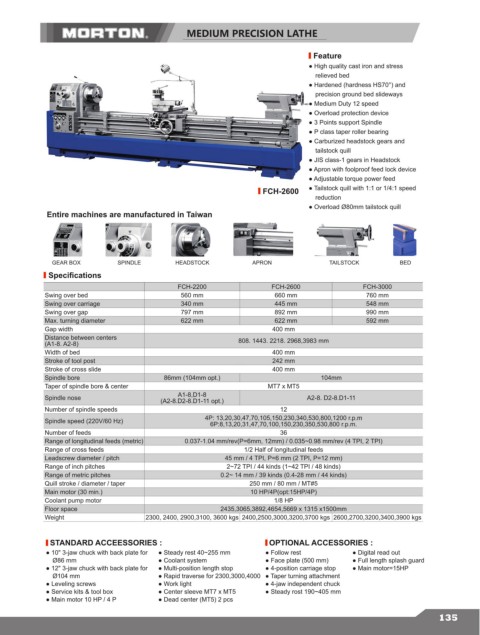

MEDIUM PRECISION LATHE

Feature
● High quality cast iron and stress
relieved bed
● Hardened (hardness HS70°) and
precision ground bed slideways
● Medium Duty 12 speed
● Overload protection device
● 3 Points support Spindle
● P class taper roller bearing
● Carburized headstock gears and
tailstock quill
● JIS class-1 gears in Headstock
● Apron with foolproof feed lock device
● Adjustable torque power feed
FCH-2600 ● Tailstock quill with 1:1 or 1/4:1 speed
reduction
● Overload Ø80mm tailstock quill
Entire machines are manufactured in Taiwan

GEAR BOX SPINDLE HEADSTOCK APRON TAILSTOCK BED
Specifications
FCH-2200 FCH-2600 FCH-3000
Swing over bed 560 mm 660 mm 760 mm
Swing over carriage 340 mm 445 mm 548 mm
Swing over gap 797 mm 892 mm 990 mm
Max. turning diameter 622 mm 622 mm 592 mm
Gap width 400 mm
Distance between centers 808. 1443. 2218. 2968,3983 mm
(A1-8. A2-8)
Width of bed 400 mm
Stroke of tool post 242 mm
Stroke of cross slide 400 mm
Spindle bore 86mm (104mm opt.) 104mm
Taper of spindle bore & center MT7 x MT5
A1-8,D1-8
Spindle nose (A2-8.D2-8.D1-11 opt.) A2-8. D2-8.D1-11
Number of spindle speeds 12
Spindle speed (220V/60 Hz) 4P: 13,20,30,47,70,105,150,230,340,530,800,1200 r.p.m
6P:8,13,20,31,47,70,100,150,230,350,530,800 r.p.m.
Number of feeds 36
Range of longitudinal feeds (metric) 0.037-1.04 mm/rev(P=6mm, 12mm) / 0.035~0.98 mm/rev (4 TPI, 2 TPI)
Range of cross feeds 1/2 Half of longitudinal feeds
Leadscrew diameter / pitch 45 mm / 4 TPI, P=6 mm (2 TPI, P=12 mm)
Range of inch pitches 2~72 TPI / 44 kinds (1~42 TPI / 48 kinds)
Range of metric pitches 0.2~ 14 mm / 39 kinds (0.4-28 mm / 44 kinds)
Quill stroke / diameter / taper 250 mm / 80 mm / MT#5
Main motor (30 min.) 10 HP/4P(opt:15HP/4P)
Coolant pump motor 1/8 HP
Floor space 2435,3065,3892,4654,5669 x 1315 x1500mm
Weight 2300, 2400, 2900,3100, 3600 kgs 2400,2500,3000,3200,3700 kgs 2600,2700,3200,3400,3900 kgs

STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :
● 10" 3-jaw chuck with back plate for ● Steady rest 40~255 mm ● Follow rest ● Digital read out
Ø86 mm ● Coolant system ● Face plate (500 mm) ● Full length splash guard
● 12" 3-jaw chuck with back plate for ● Multi-position length stop ● 4-position carriage stop ● Main motor=15HP
Ø104 mm ● Rapid traverse for 2300,3000,4000 ● Taper turning attachment
● Leveling screws ● Work light ● 4-jaw independent chuck
● Service kits & tool box ● Center sleeve MT7 x MT5 ● Steady rost 190~405 mm
● Main motor 10 HP / 4 P ● Dead center (MT5) 2 pcs
