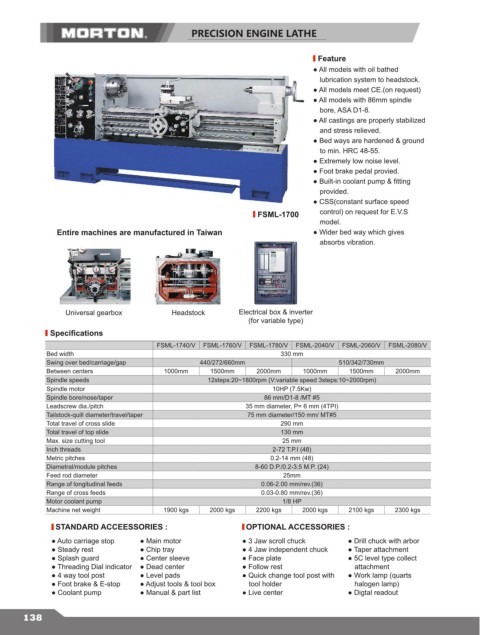

PRECISION ENGINE LATHE

Feature
● All models with oil bathed
lubrication system to headstock.
● All models meet CE.(on request)
● All models with 86mm spindle
bore, ASA D1-8.
● All castings are properly stabilized
and stress relieved.
● Bed ways are hardened & ground
to min. HRC 48-55.
● Extremely low noise level.
● Foot brake pedal provied.
● Built-in coolant pump & fitting
provided.
● CSS(constant surface speed
FSML-1700 control) on request for E.V.S
model.
Entire machines are manufactured in Taiwan ● Wider bed way which gives
absorbs vibration.

Universal gearbox Headstock Electrical box & inverter
(for variable type)
Specifications
FSML-1740/V FSML-1760/V FSML-1780/V FSML-2040/V FSML-2060/V FSML-2080/V
Bed width 330 mm
Swing over bed/carriage/gap 440/272/660mm 510/342/730mm
Between centers 1000mm 1500mm 2000mm 1000mm 1500mm 2000mm
Spindle speeds 12steps:20~1800rpm (V:variable speed 3steps:10~2000rpm)
Spindle motor 10HP (7.5Kw)
Spindle bore/nose/taper 86 mm/D1-8 /MT #5
Leadscrew dia./pitch 35 mm diameter, P= 6 mm (4TPI)
Tailstock-quill diameter/travel/taper 75 mm diameter/150 mm/ MT#5
Total travel of cross slide 290 mm
Total travel of top slide 130 mm
Max. size cutting tool 25 mm
Inch threads 2-72 T.P.I (48)
Metric pitches 0.2-14 mm (48)
Diametral/module pitches 8-60 D.P./0.2-3.5 M.P. (24)
Feed rod diameter 25mm
Range of longitudinal feeds 0.06-2.00 mm/rev.(36)
Range of cross feeds 0.03-0.80 mm/rev.(36)
Motor coolant pump 1/8 HP
Machine net weight 1900 kgs 2000 kgs 2200 kgs 2000 kgs 2100 kgs 2300 kgs
STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :

● Auto carriage stop ● Main motor ● 3 Jaw scroll chuck ● Drill chuck with arbor
● Steady rest ● Chip tray ● 4 Jaw independent chuck ● Taper attachment
● Splash guard ● Center sleeve ● Face plate ● 5C level type collect
● Threading Dial indicator ● Dead center ● Follow rest attachment
● 4 way tool post ● Level pads ● Quick change tool post with ● Work lamp (quarts
● Foot brake & E-stop ● Adjust tools & tool box tool holder halogen lamp)
● Coolant pump ● Manual & part list ● Live center ● Digtal readout

138
