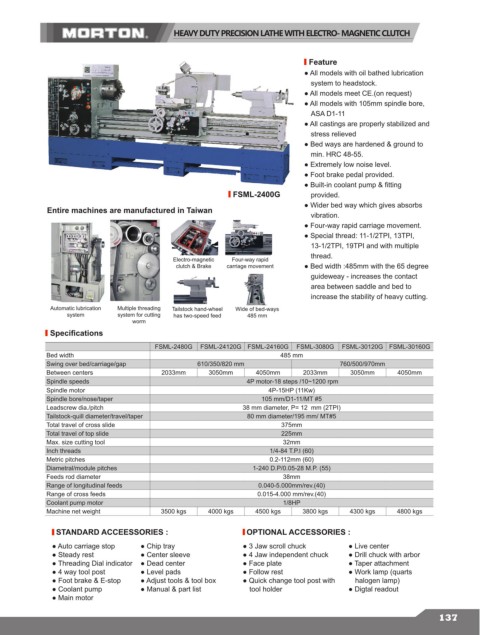

HEAVY DUTY PRECISION LATHE WITH ELECTRO- MAGNETIC CLUTCH

Feature
● All models with oil bathed lubrication
system to headstock.
● All models meet CE.(on request)
● All models with 105mm spindle bore,
ASA D1-11
● All castings are properly stabilized and
stress relieved
● Bed ways are hardened & ground to
min. HRC 48-55.
● Extremely low noise level.
● Foot brake pedal provided.
● Built-in coolant pump & fitting
FSML-2400G provided.
● Wider bed way which gives absorbs
Entire machines are manufactured in Taiwan
vibration.
● Four-way rapid carriage movement.
● Special thread: 11-1/2TPI, 13TPI,
13-1/2TPI, 19TPI and with multiple
thread.
Electro-magnetic Four-way rapid
clutch & Brake carriage movement ● Bed width :485mm with the 65 degree
guideweay - increases the contact
area between saddle and bed to
increase the stability of heavy cutting.

Automatic lubrication Multiple threading Tailstock hand-wheel Wide of bed-ways
system system for cutting has two-speed feed 485 mm
worm
Specifications

FSML-2480G FSML-24120G FSML-24160G FSML-3080G FSML-30120G FSML-30160G
Bed width 485 mm
Swing over bed/carriage/gap 610/350/820 mm 760/500/970mm
Between centers 2033mm 3050mm 4050mm 2033mm 3050mm 4050mm
Spindle speeds 4P motor-18 steps /10~1200 rpm
Spindle motor 4P-15HP (11Kw)
Spindle bore/nose/taper 105 mm/D1-11/MT #5
Leadscrew dia./pitch 38 mm diameter, P= 12 mm (2TPI)
Tailstock-quill diameter/travel/taper 80 mm diameter/195 mm/ MT#5
Total travel of cross slide 375mm
Total travel of top slide 225mm
Max. size cutting tool 32mm
Inch threads 1/4-84 T.P.I (60)
Metric pitches 0.2-112mm (60)
Diametral/module pitches 1-240 D.P/0.05-28 M.P. (55)
Feeds rod diameter 38mm
Range of longitudinal feeds 0.040-5.000mm/rev.(40)
Range of cross feeds 0.015-4.000 mm/rev.(40)
Coolant pump motor 1/8HP
Machine net weight 3500 kgs 4000 kgs 4500 kgs 3800 kgs 4300 kgs 4800 kgs

STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :
● Auto carriage stop ● Chip tray ● 3 Jaw scroll chuck ● Live center
● Steady rest ● Center sleeve ● 4 Jaw independent chuck ● Drill chuck with arbor
● Threading Dial indicator ● Dead center ● Face plate ● Taper attachment
● 4 way tool post ● Level pads ● Follow rest ● Work lamp (quarts
● Foot brake & E-stop ● Adjust tools & tool box ● Quick change tool post with halogen lamp)
● Coolant pump ● Manual & part list tool holder ● Digtal readout
● Main motor
