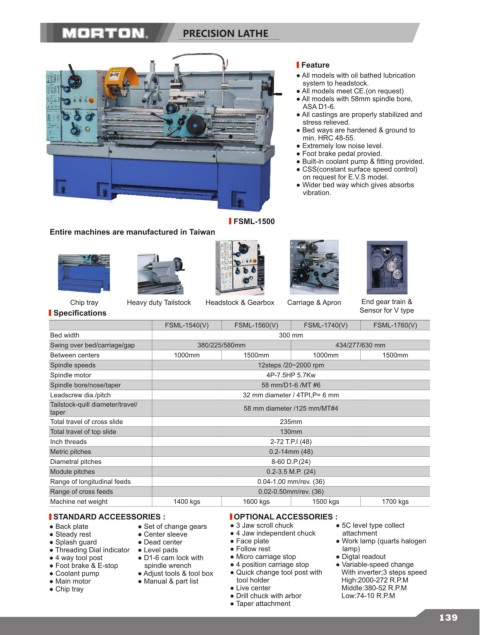

PRECISION LATHE

Feature
● All models with oil bathed lubrication
system to headstock.
● All models meet CE.(on request)
● All models with 58mm spindle bore,
ASA D1-6.
● All castings are properly stabilized and
stress relieved.
● Bed ways are hardened & ground to
min. HRC 48-55.
● Extremely low noise level.
● Foot brake pedal provied.
● Built-in coolant pump & fitting provided.
● CSS(constant surface speed control)
on request for E.V.S model.
● Wider bed way which gives absorbs
vibration.

FSML-1500
Entire machines are manufactured in Taiwan

Chip tray Heavy duty Tailstock Headstock & Gearbox Carriage & Apron End gear train &
Specifications Sensor for V type
FSML-1540(V) FSML-1560(V) FSML-1740(V) FSML-1760(V)
Bed width 300 mm
Swing over bed/carriage/gap 380/225/580mm 434/277/630 mm
Between centers 1000mm 1500mm 1000mm 1500mm
Spindle speeds 12steps /20~2000 rpm
Spindle motor 4P-7.5HP 5.7Kw
Spindle bore/nose/taper 58 mm/D1-6 /MT #6
Leadscrew dia./pitch 32 mm diameter / 4TPI,P= 6 mm
Tailstock-quill diameter/travel/ 58 mm diameter /125 mm/MT#4
taper
Total travel of cross slide 235mm
Total travel of top slide 130mm
Inch threads 2-72 T.P.I (48)
Metric pitches 0.2-14mm (48)
Diametral pitches 8-60 D.P.(24)
Module pitches 0.2-3.5 M.P. (24)
Range of longitudinal feeds 0.04-1.00 mm/rev. (36)
Range of cross feeds 0.02-0.50mm/rev. (36)
Machine net weight 1400 kgs 1600 kgs 1500 kgs 1700 kgs

STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :
● Back plate ● Set of change gears ● 3 Jaw scroll chuck ● 5C level type collect
● Steady rest ● Center sleeve ● 4 Jaw independent chuck attachment
● Splash guard ● Dead center ● Face plate ● Work lamp (quarts halogen
● Threading Dial indicator ● Level pads ● Follow rest lamp)
● 4 way tool post ● D1-6 cam lock with ● Micro carriage stop ● Digtal readout
● Foot brake & E-stop spindle wrench ● 4 position carriage stop ● Variable-speed change
● Coolant pump ● Adjust tools & tool box ● Quick change tool post with With inverter;3 steps speed
● Main motor ● Manual & part list tool holder High:2000-272 R.P.M
● Chip tray ● Live center Middle:380-52 R.P.M
● Drill chuck with arbor Low:74-10 R.P.M
● Taper attachment
139
