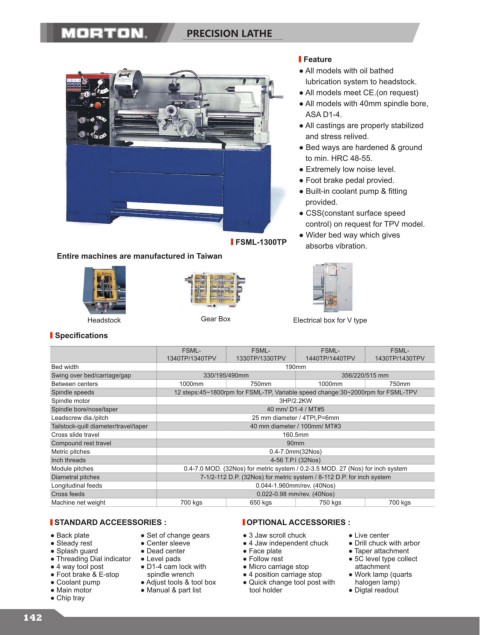

PRECISION LATHE

Feature
● All models with oil bathed
lubrication system to headstock.
● All models meet CE.(on request)
● All models with 40mm spindle bore,
ASA D1-4.
● All castings are properly stabilized
and stress relived.
● Bed ways are hardened & ground
to min. HRC 48-55.
● Extremely low noise level.
● Foot brake pedal provied.
● Built-in coolant pump & fitting
provided.
● CSS(constant surface speed
control) on request for TPV model.
● Wider bed way which gives
FSML-1300TP absorbs vibration.
Entire machines are manufactured in Taiwan

Headstock Gear Box Electrical box for V type

Specifications
FSML- FSML- FSML- FSML-
1340TP/1340TPV 1330TP/1330TPV 1440TP/1440TPV 1430TP/1430TPV
Bed width 190mm
Swing over bed/carriage/gap 330/195/490mm 356/220/515 mm
Between centers 1000mm 750mm 1000mm 750mm
Spindle speeds 12 steps:45~1800rpm for FSML-TP, Variable speed change:30~2000rpm for FSML-TPV
Spindle motor 3HP/2.2KW
Spindle bore/nose/taper 40 mm/ D1-4 / MT#5
Leadscrew dia./pitch 25 mm diameter / 4TPI,P=6mm
Tailstock-quill diameter/travel/taper 40 mm diameter / 100mm/ MT#3
Cross slide travel 160.5mm
Compound rest travel 90mm
Metric pitches 0.4-7.0mm(32Nos)
Inch threads 4-56 T.P.I (32Nos)
Module pitches 0.4-7.0 MOD. (32Nos) for metric system / 0.2-3.5 MOD. 27 (Nos) for inch system
Diametral pitches 7-1/2-112 D.P. (32Nos) for metric system / 8-112 D.P. for inch system
Longitudinal feeds 0.044-1.960mm/rev. (40Nos)
Cross feeds 0.022-0.98 mm/rev. (40Nos)
Machine net weight 700 kgs 650 kgs 750 kgs 700 kgs
STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :

● Back plate ● Set of change gears ● 3 Jaw scroll chuck ● Live center
● Steady rest ● Center sleeve ● 4 Jaw independent chuck ● Drill chuck with arbor
● Splash guard ● Dead center ● Face plate ● Taper attachment
● Threading Dial indicator ● Level pads ● Follow rest ● 5C level type collect
● 4 way tool post ● D1-4 cam lock with ● Micro carriage stop attachment
● Foot brake & E-stop spindle wrench ● 4 position carriage stop ● Work lamp (quarts
● Coolant pump ● Adjust tools & tool box ● Quick change tool post with halogen lamp)
● Main motor ● Manual & part list tool holder ● Digtal readout
● Chip tray

142
