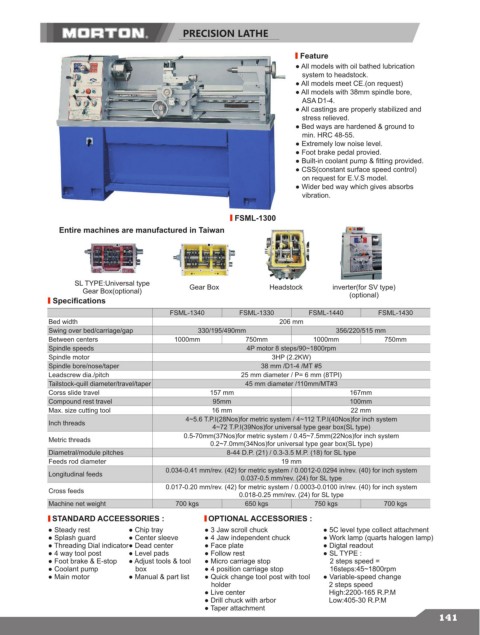

PRECISION LATHE

Feature
● All models with oil bathed lubrication
system to headstock.
● All models meet CE.(on request)
● All models with 38mm spindle bore,
ASA D1-4.
● All castings are properly stabilized and
stress relieved.
● Bed ways are hardened & ground to
min. HRC 48-55.
● Extremely low noise level.
● Foot brake pedal provied.
● Built-in coolant pump & fitting provided.
● CSS(constant surface speed control)
on request for E.V.S model.
● Wider bed way which gives absorbs
vibration.

FSML-1300
Entire machines are manufactured in Taiwan

SL TYPE:Universal type Gear Box Headstock inverter(for SV type)
Gear Box(optional) (optional)
Specifications
FSML-1340 FSML-1330 FSML-1440 FSML-1430
Bed width 206 mm
Swing over bed/carriage/gap 330/195/490mm 356/220/515 mm
Between centers 1000mm 750mm 1000mm 750mm
Spindle speeds 4P motor 8 steps/90~1800rpm
Spindle motor 3HP (2.2KW)
Spindle bore/nose/taper 38 mm /D1-4 /MT #5
Leadscrew dia./pitch 25 mm diameter / P= 6 mm (8TPI)
Tailstock-quill diameter/travel/taper 45 mm diameter /110mm/MT#3
Corss slide travel 157 mm 167mm
Compound rest travel 95mm 100mm
Max. size cutting tool 16 mm 22 mm
4~5.6 T.P.I(28Nos)for metric system / 4~112 T.P.I(40Nos)for inch system
Inch threads
4~72 T.P.I(39Nos)for universal type gear box(SL type)
0.5-70mm(37Nos)for metric system / 0.45~7.5mm(22Nos)for inch system
Metric threads
0.2~7.0mm(34Nos)for universal type gear box(SL type)
Diametral/module pitches 8-44 D.P. (21) / 0.3-3.5 M.P. (18) for SL type
Feeds rod diameter 19 mm
0.034-0.41 mm/rev. (42) for metric system / 0.0012-0.0294 in/rev. (40) for inch system
Longitudinal feeds
0.037-0.5 mm/rev. (24) for SL type
0.017-0.20 mm/rev. (42) for metric system / 0.0003-0.0100 in/rev. (40) for inch system
Cross feeds
0.018-0.25 mm/rev. (24) for SL type
Machine net weight 700 kgs 650 kgs 750 kgs 700 kgs
STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :
● Steady rest ● Chip tray ● 3 Jaw scroll chuck ● 5C level type collect attachment
● Splash guard ● Center sleeve ● 4 Jaw independent chuck ● Work lamp (quarts halogen lamp)
● Threading Dial indicator● Dead center ● Face plate ● Digtal readout
● 4 way tool post ● Level pads ● Follow rest ● SL TYPE :
● Foot brake & E-stop ● Adjust tools & tool ● Micro carriage stop 2 steps speed =
● Coolant pump box ● 4 position carriage stop 16steps:45~1800rpm
● Main motor ● Manual & part list ● Quick change tool post with tool ● Variable-speed change
holder 2 steps speed
● Live center High:2200-165 R.P.M
● Drill chuck with arbor Low:405-30 R.P.M
● Taper attachment
141
