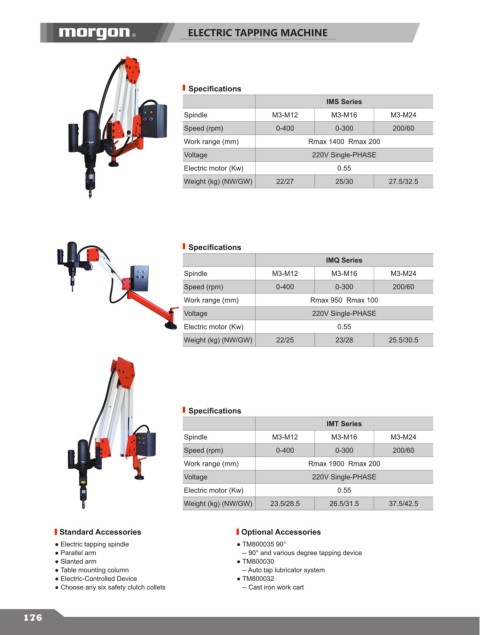

ELECTRIC TAPPING MACHINE

Specifications
IMS Series

Spindle M3-M12 M3-M16 M3-M24
Speed (rpm) 0-400 0-300 200/60
Work range (mm) Rmax 1400 Rmax 200
Voltage 220V Single-PHASE
Electric motor (Kw) 0.55
Weight (kg) (NW/GW) 22/27 25/30 27.5/32.5

Specifications

IMQ Series
Spindle M3-M12 M3-M16 M3-M24
Speed (rpm) 0-400 0-300 200/60
Work range (mm) Rmax 950 Rmax 100
Voltage 220V Single-PHASE
Electric motor (Kw) 0.55

Weight (kg) (NW/GW) 22/25 23/28 25.5/30.5

Specifications
IMT Series
Spindle M3-M12 M3-M16 M3-M24
Speed (rpm) 0-400 0-300 200/60
Work range (mm) Rmax 1900 Rmax 200
Voltage 220V Single-PHASE

Electric motor (Kw) 0.55
Weight (kg) (NW/GW) 23.5/28.5 26.5/31.5 37.5/42.5

Standard Accessories Optional Accessories
● Electric tapping spindle ● TM800035 90°
● Parallel arm -- 90° and various degree tapping device
● Slanted arm ● TM800030
● Table mounting column -- Auto tap lubricator system
● Electric-Controlled Device ● TM800032
● Choose any six safety clutch collets -- Cast iron work cart
