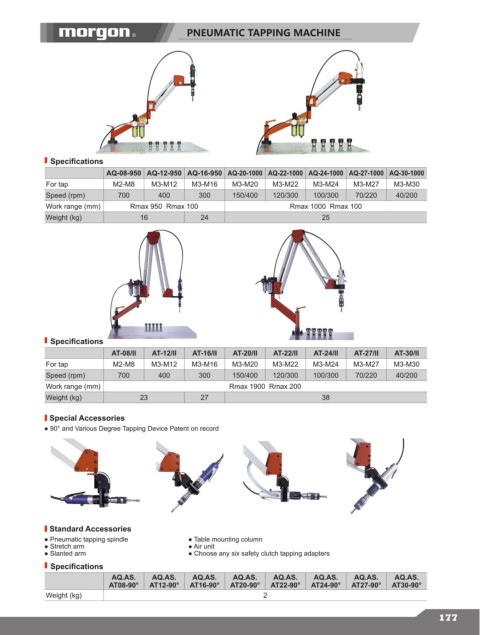

PNEUMATIC TAPPING MACHINE

Specifications
AQ-08-950 AQ-12-950 AQ-16-950 AQ-20-1000 AQ-22-1000 AQ-24-1000 AQ-27-1000 AQ-30-1000
For tap M2-M8 M3-M12 M3-M16 M3-M20 M3-M22 M3-M24 M3-M27 M3-M30
Speed (rpm) 700 400 300 150/400 120/300 100/300 70/220 40/200
Work range (mm) Rmax 950 Rmax 100 Rmax 1000 Rmax 100
Weight (kg) 16 24 25

Specifications
AT-08/II AT-12/II AT-16/II AT-20/II AT-22/II AT-24/II AT-27/II AT-30/II
For tap M2-M8 M3-M12 M3-M16 M3-M20 M3-M22 M3-M24 M3-M27 M3-M30
Speed (rpm) 700 400 300 150/400 120/300 100/300 70/220 40/200
Work range (mm) Rmax 1900 Rmax 200
Weight (kg) 23 27 38

Special Accessories
● 90° and Various Degree Tapping Device Patent on record

Standard Accessories
● Pneumatic tapping spindle ● Table mounting column
● Stretch arm ● Air unit
● Slanted arm ● Choose any six safety clutch tapping adapters
Specifications
AQ.AS. AQ.AS. AQ.AS. AQ.AS. AQ.AS. AQ.AS. AQ.AS. AQ.AS.
AT08-90° AT12-90° AT16-90° AT20-90° AT22-90° AT24-90° AT27-90° AT30-90°
Weight (kg) 2
