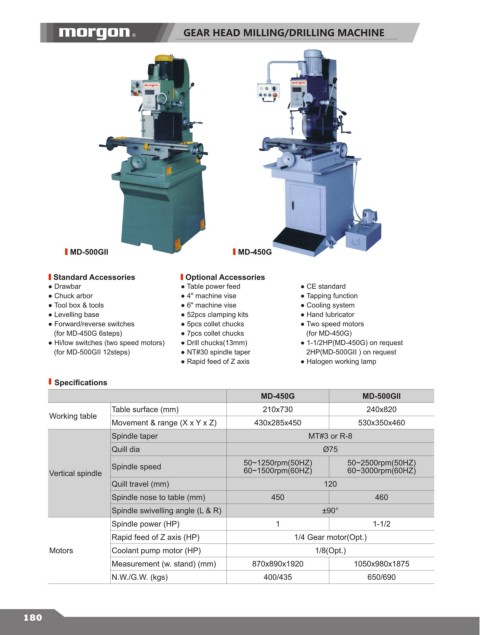

GEAR HEAD MILLING/DRILLING MACHINE

MD-500GII MD-450G

Standard Accessories Optional Accessories
● Drawbar ● Table power feed ● CE standard
● Chuck arbor ● 4" machine vise ● Tapping function
● Tool box & tools ● 6" machine vise ● Cooling system
● Levelling base ● 52pcs clamping kits ● Hand lubricator
● Forward/reverse switches ● 5pcs collet chucks ● Two speed motors
(for MD-450G 6steps) ● 7pcs collet chucks (for MD-450G)
● Hi/low switches (two speed motors) ● Drill chucks(13mm) ● 1-1/2HP(MD-450G) on request
(for MD-500GII 12steps) ● NT#30 spindle taper 2HP(MD-500GII ) on request
● Rapid feed of Z axis ● Halogen working lamp

Specifications
MD-450G MD-500GII
Table surface (mm) 210x730 240x820
Working table
Movement & range (X x Y x Z) 430x285x450 530x350x460
Spindle taper MT#3 or R-8
Quill dia Ø75

Spindle speed 50~1250rpm(50HZ) 50~2500rpm(50HZ)
Vertical spindle 60~1500rpm(60HZ) 60~3000rpm(60HZ)
Quill travel (mm) 120
Spindle nose to table (mm) 450 460

Spindle swivelling angle (L & R) ±90°
Spindle power (HP) 1 1-1/2
Rapid feed of Z axis (HP) 1/4 Gear motor(Opt.)
Motors Coolant pump motor (HP) 1/8(Opt.)
Measurement (w. stand) (mm) 870x890x1920 1050x980x1875
N.W./G.W. (kgs) 400/435 650/690

180
