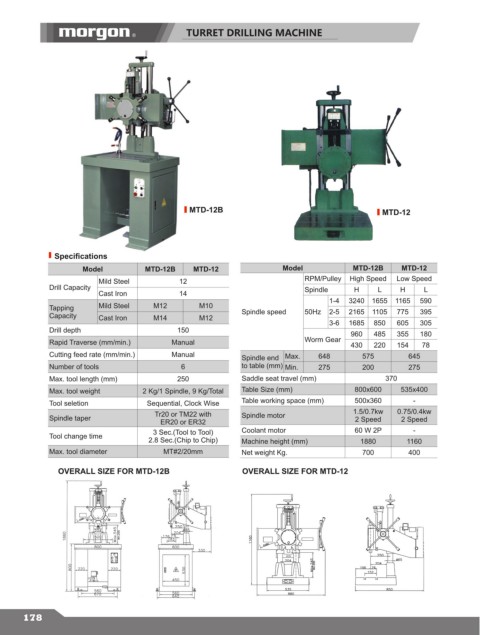

TURRET DRILLING MACHINE

MTD-12B MTD-12

Specifications
Model MTD-12B MTD-12 Model MTD-12B MTD-12
Mild Steel 12 RPM/Pulley High Speed Low Speed
Drill Capacity Spindle H L H L
Cast Iron 14
1-4 3240 1655 1165 590
Tapping Mild Steel M12 M10 Spindle speed 50Hz 2-5 2165 1105 775 395
Capacity Cast Iron M14 M12
3-6 1685 850 605 305
Drill depth 150 960 485 355 180
Rapid Traverse (mm/min.) Manual Worm Gear 430 220 154 78
Cutting feed rate (mm/min.) Manual Spindle end Max. 648 575 645
Number of tools 6 to table (mm) Min. 275 200 275
Max. tool length (mm) 250 Saddle seat travel (mm) 370
Max. tool weight 2 Kg/1 Spindle, 9 Kg/Total Table Size (mm) 800x600 535x400
Tool seletion Sequential, Clock Wise Table working space (mm) 500x360 -
Tr20 or TM22 with Spindle motor 1.5/0.7kw 0.75/0.4kw
Spindle taper 2 Speed 2 Speed
ER20 or ER32
3 Sec.(Tool to Tool) Coolant motor 60 W 2P -
Tool change time
2.8 Sec.(Chip to Chip) Machine height (mm) 1880 1160
Max. tool diameter MT#2/20mm Net weight Kg. 700 400

OVERALL SIZE FOR MTD-12B OVERALL SIZE FOR MTD-12

178
