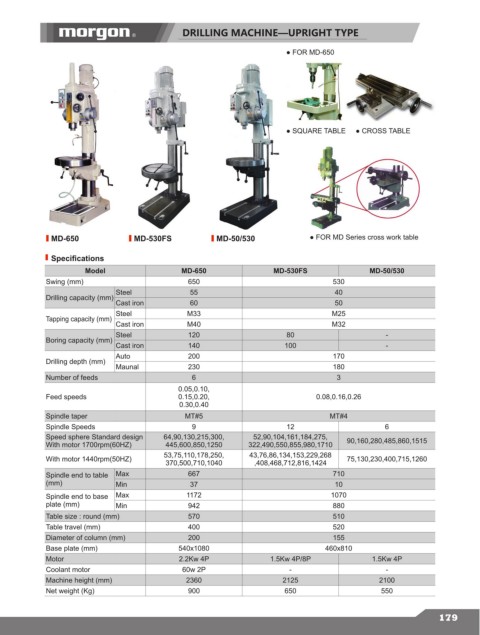

DRILLING MACHINE—UPRIGHT TYPE

● FOR MD-650

● SQUARE TABLE ● CROSS TABLE

MTD-12

MD-650 MD-530FS MD-50/530 ● FOR MD Series cross work table

Specifications
Model MD-650 MD-530FS MD-50/530
Swing (mm) 650 530
Steel 55 40
Drilling capacity (mm)
Cast iron 60 50
Steel M33 M25
Tapping capacity (mm)
Cast iron M40 M32
Steel 120 80 -
Boring capacity (mm)
Cast iron 140 100 -
Auto 200 170
Drilling depth (mm)
Maunal 230 180
Number of feeds 6 3
0.05,0.10,
Feed speeds 0.15,0.20, 0.08,0.16,0.26
0.30,0.40
Spindle taper MT#5 MT#4
Spindle Speeds 9 12 6
Speed sphere Standard design 64,90,130,215,300, 52,90,104,161,184,275, 90,160,280,485,860,1515
With motor 1700rpm(60HZ) 445,600,850,1250 322,490,550,855,980,1710
53,75,110,178,250, 43,76,86,134,153,229,268
With motor 1440rpm(50HZ) 75,130,230,400,715,1260
370,500,710,1040 ,408,468,712,816,1424
Spindle end to table Max 667 710
(mm) Min 37 10
Spindle end to base Max 1172 1070
plate (mm) Min 942 880
Table size : round (mm) 570 510
Table travel (mm) 400 520
Diameter of column (mm) 200 155
Base plate (mm) 540x1080 460x810
Motor 2.2Kw 4P 1.5Kw 4P/8P 1.5Kw 4P
Coolant motor 60w 2P - -
Machine height (mm) 2360 2125 2100
Net weight (Kg) 900 650 550
